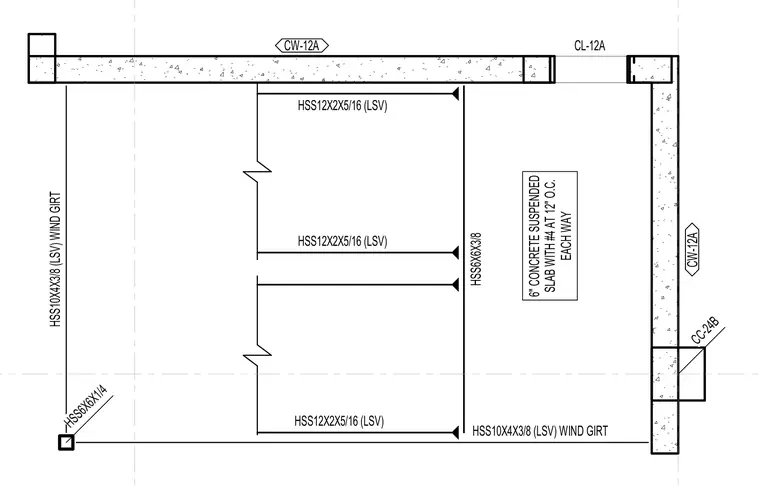

The assembly consists of a six-inch concrete suspended slab reinforced with number four bars at twelve inches on center each way. The structural framing incorporates hollow structural section members including HSS 12x2x5/16 and HSS 6x6x3/8 shapes. Lateral support is provided by HSS 10x4x3/8 wind girts and HSS 6x6x1/4 members.
HSS10X4X3/8 (LSV) WIND GIRT HSS6X6X1/4 CC-24B CW-12A CL-12A CW-12A HSS12X2X5/16 (LSV) HSS12X2X5/16 (LSV) 6" CONCRETE SUSPENDED SLAB WITH #4 AT 12" O.C. EACH WAY HSS6X6X3/8 HSS12X2X5/16 (LSV) HSS10X4X3/8 (LSV) WIND GIRT
