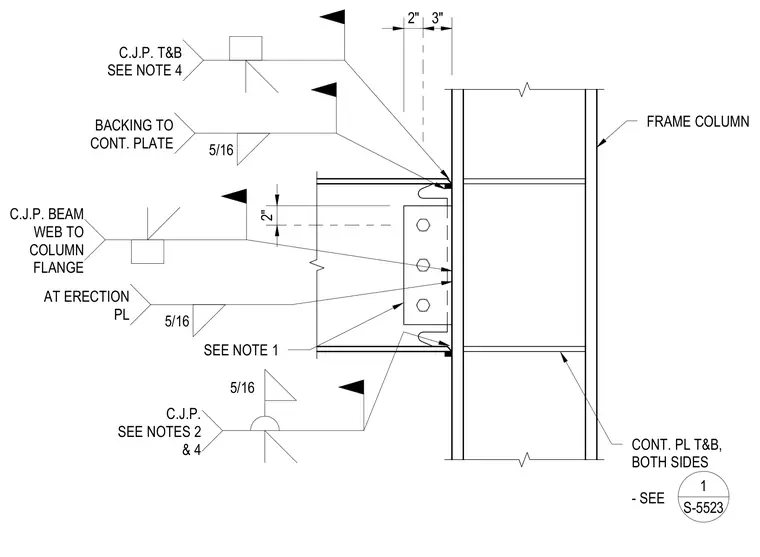

A structural steel beam connects to a frame column flange using complete joint penetration welds at the top and bottom flanges with continuous plates on both sides. A vertical shear plate is welded to the column flange and bolted to the beam web with three bolts. A backing bar is welded to the continuous plate with a five-sixteenths inch fillet weld. Additional field welds include a five-sixteenths inch fillet weld at the erection plate.
C.J.P. T&B SEE NOTE 4 FRAME COLUMN 2" 2" 3" SEE NOTE 1 5/16 AT ERECTION PL C.J.P. BEAM WEB TO COLUMN FLANGE CONT. PL T&B, BOTH SIDES - SEE 1 S-5523 C.J.P. SEE NOTES 2 & 4 5/16 BACKING TO CONT. PLATE 5/16
