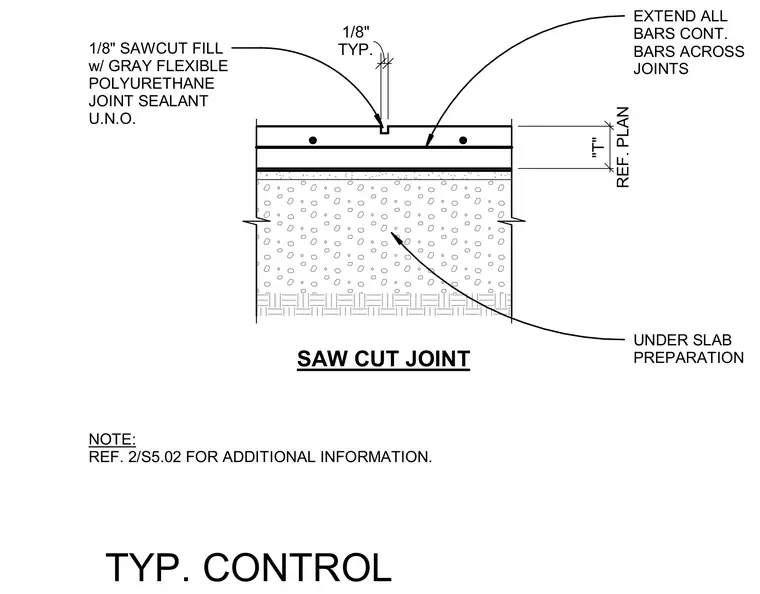

A concrete slab on grade features a typical one-eighth-inch sawcut control joint filled with gray flexible polyurethane joint sealant unless noted otherwise. Continuous reinforcing bars extend across the joint per the structural plan. The slab rests on standard under-slab preparation.
UNDER SLAB PREPARATION SAW CUT JOINT 1/8" SAWCUT FILL w/ GRAY FLEXIBLE POLYURETHANE JOINT SEALANT U.N.O. 1/8" TYP. REF. PLAN "T" NOTE: REF. 2/S5.02 FOR ADDITIONAL INFORMATION. EXTEND ALL BARS CONT. BARS ACROSS JOINTS TYP. CONTROL
