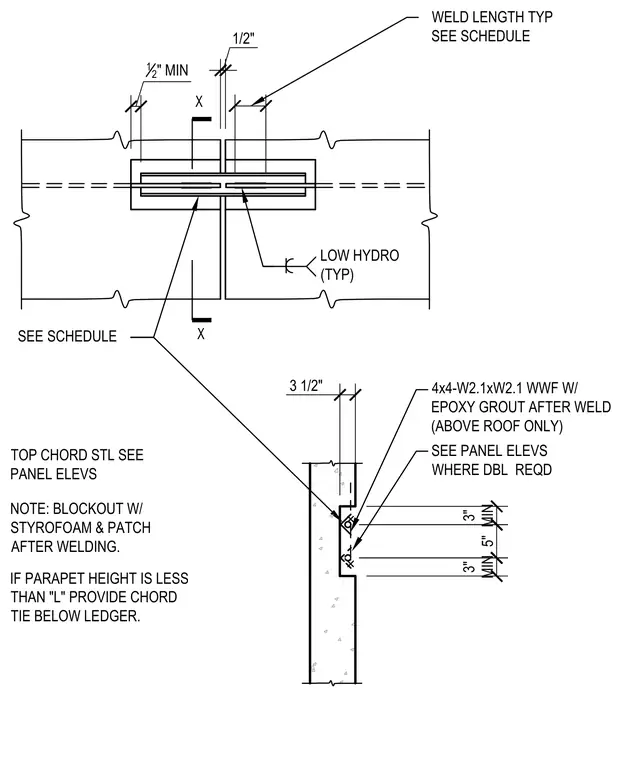

Embedded structural steel chord ties connect adjacent concrete panels at the roof level using low-hydrogen welds sized per schedule. A blockout formed with styrofoam accommodates the weld zone and receives an epoxy grout patch after welding is complete. Welded wire reinforcement of 4x4-W2.1xW2.1 WWF is detailed above the roof only, with double connections provided where noted on panel elevations. If the parapet height falls below dimension L, a chord tie must be positioned below the ledger.
WELD LENGTH TYP SEE SCHEDULE SEE PANEL ELEVS WHERE DBL REQD 3" MIN 3" MIN 5" NOTE: BLOCKOUT W/ STYROFOAM & PATCH AFTER WELDING. IF PARAPET HEIGHT IS LESS THAN "L" PROVIDE CHORD TIE BELOW LEDGER. TOP CHORD STL SEE PANEL ELEVS 12 " MIN X X 1/2" SEE SCHEDULE LOW HYDRO (TYP) 4x4-W2.1xW2.1 WWF W/ EPOXY GROUT AFTER WELD (ABOVE ROOF ONLY) 3 1/2"
