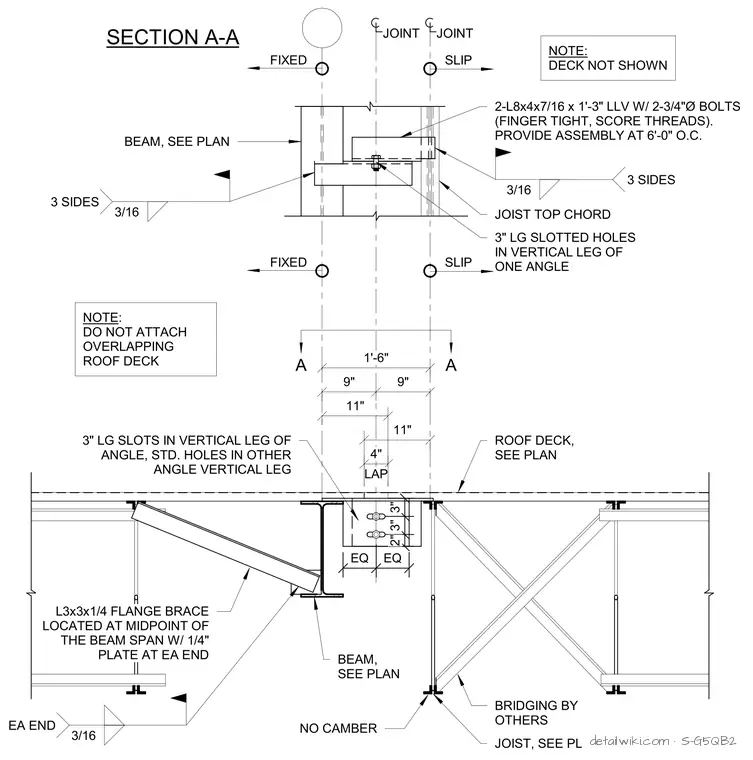

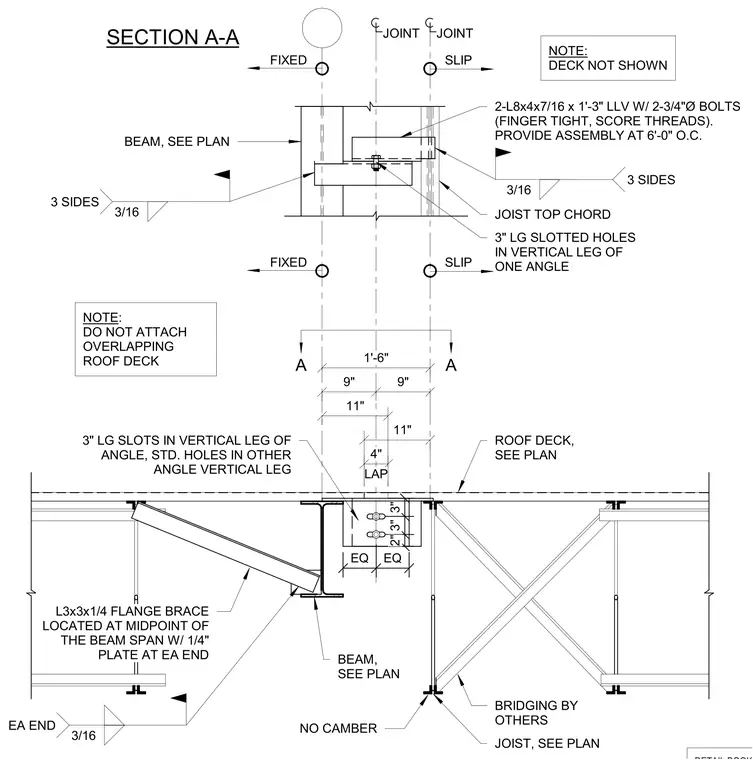

This assembly facilitates roof expansion through a slip connection consisting of two L8x4x7/16 angles, each 1 foot 3 inches long, connected to the joist top chord. The vertical legs of the angles feature three-inch long slotted holes to allow for movement, secured by two 3/4-inch diameter bolts that are finger-tightened with scored threads to prevent loosening. The angles are welded to the joist top chord with 3/16-inch fillet welds on three sides. The assembly is spaced at 6 feet on center, and the overlapping roof deck must remain unattached at the joint to accommodate thermal movement. A separate L3x3x1/4 flange brace is welded to the beam with 3/16-inch fillet welds on three sides at each end.
Text on the drawing
A A SECTION A-A FIXED NOTE: DECK NOT SHOWN SLIP 2-L8x4x7/16 x 1'-3" LLV W/ 2-3/4"Ø BOLTS (FINGER TIGHT, SCORE THREADS). PROVIDE ASSEMBLY AT 6'-0" O.C. JOIST TOP CHORD 3/16 3 SIDES 3" LG SLOTTED HOLES IN VERTICAL LEG OF ONE ANGLE BEAM, SEE PLAN 3/16 3 SIDES L3x3x1/4 FLANGE BRACE ROOF DECK, SEE PLAN 3" LG SLOTS IN VERTICAL LEG OF ANGLE, STD. HOLES IN OTHER ANGLE VERTICAL LEG FIXED SLIP 1'-6" 11" 11" 9" 9" LAP 4" NOTE: DO NOT ATTACH OVERLAPPING ROOF DECK JOINT JOINT 2" 3" 3" EQ EQ
