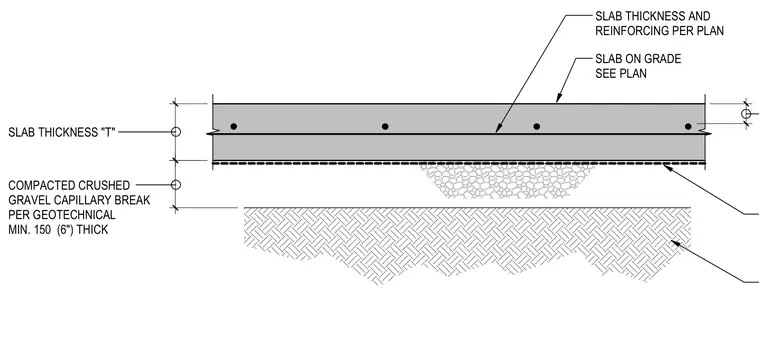

The concrete slab on grade rests directly on a compacted crushed gravel capillary break, which functions as a moisture barrier per geotechnical requirements with a minimum thickness of 150 millimeters or six inches over prepared subgrade. Slab thickness and reinforcing are sized per structural plans. A vapor retarder membrane is positioned beneath the concrete pour.
SLAB ON GRADE SEE PLAN SLAB THICKNESS AND REINFORCING PER PLAN 150 SLAB THICKNESS "T" 53 125 COMPACTED CRUSHED GRAVEL CAPILLARY BREAK PER GEOTECHNICAL MIN. 150 (6") THICK
