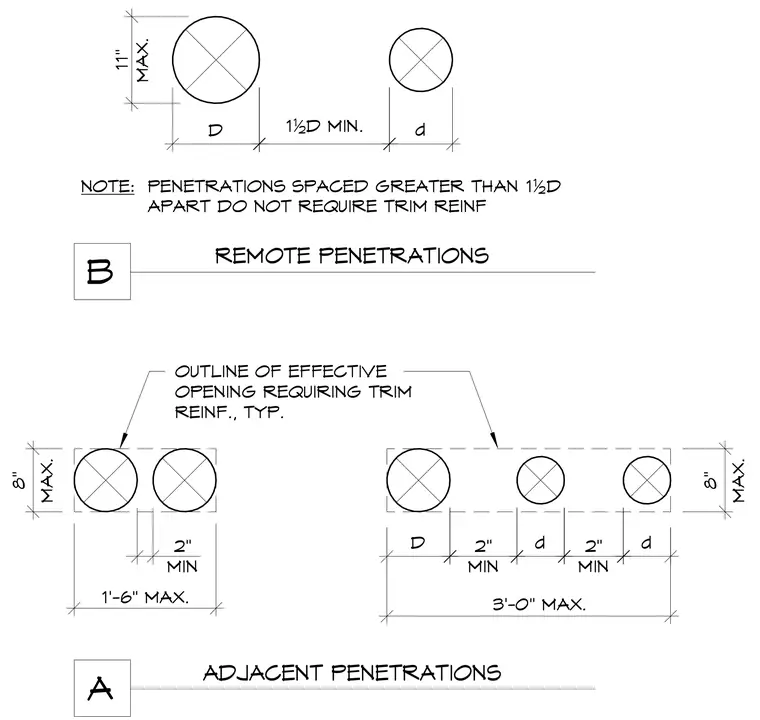

Spacing criteria for remote and adjacent penetrations establish when trim reinforcement is required in structural concrete or masonry. Remote penetrations spaced greater than one and a half times the diameter apart do not require trim reinforcement. Adjacent penetrations within maximum dimensions of eight inches by one foot six inches or three feet zero inches require a combined effective opening outline for trim reinforcement when clear spacing falls below two inches minimum.
D 2" MIN d 2" MIN d 3'-0" MAX. 8" MAX. 8" MAX. 1'-6" MAX. 2" MIN 1½D MIN. D d 11" MAX. OUTLINE OF EFFECTIVE OPENING REQUIRING TRIM REINF., TYP. NOTE: PENETRATIONS SPACED GREATER THAN 1½D APART DO NOT REQUIRE TRIM REINF B REMOTE PENETRATIONS A ADJACENT PENETRATIONS
