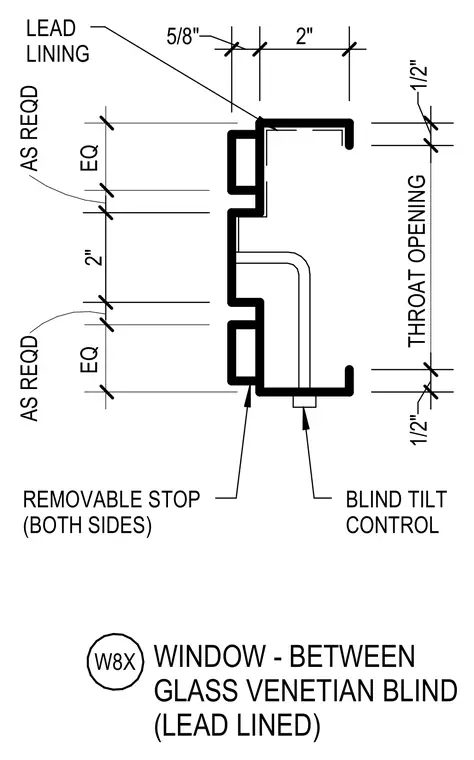

This lead-lined window assembly incorporates an integrated between-glass venetian blind with a blind tilt control mechanism. The frame features removable stops on both sides for maintenance access. Lead lining is provided as required around the perimeter. Dimensional callouts establish a two-inch throat opening with equal spacing configurations.
1/2" 1/2" 2" 5/8" 2" THROAT OPENING WINDOW - BETWEEN GLASS VENETIAN BLIND (LEAD LINED) W8X REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL LEAD LINING AS REQD AS REQD EQ EQ
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
