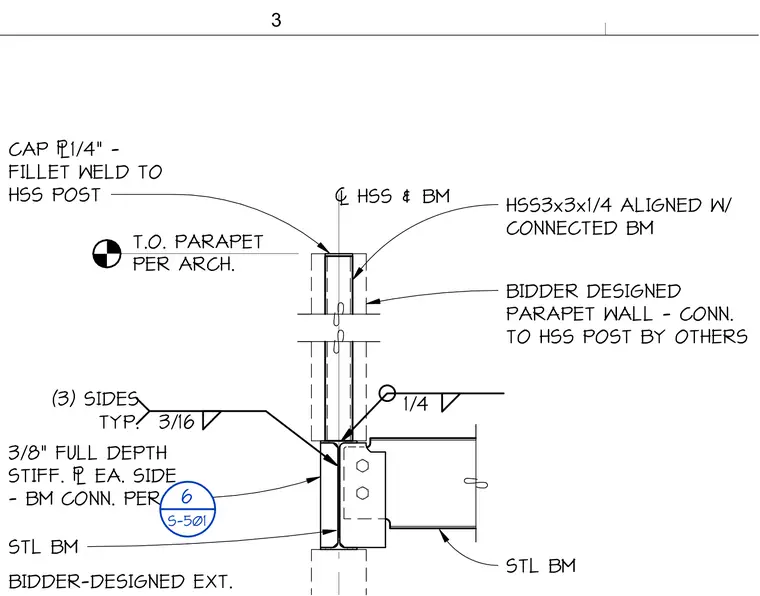

An HSS3x3x1/4 hollow structural section post aligns with the connected structural steel beam and extends up to the top of the parapet per architectural requirements. A one-quarter inch cap plate is fillet welded to the top of the HSS post. Three-eighths inch full-depth stiffener plates are provided on each side of the beam web, connected with three-sixteenths inch fillet welds on three sides typically. A bidder-designed parapet wall connects to the HSS post by others.
T.O. PARAPET PER ARCH. CAP 1/4" - FILLET WELD TO HSS POST HSS3x3x1/4 ALIGNED W/ CONNECTED BM BIDDER DESIGNED PARAPET WALL - CONN. TO HSS POST BY OTHERS STL BM BIDDER-DESIGNED EXT. 0 HSS & BM 3/8" FULL DEPTH STIFF. EA. SIDE - BM CONN. PER 3/16 (3) SIDES TYP. 6 S-501 1/4 STL BM 3
