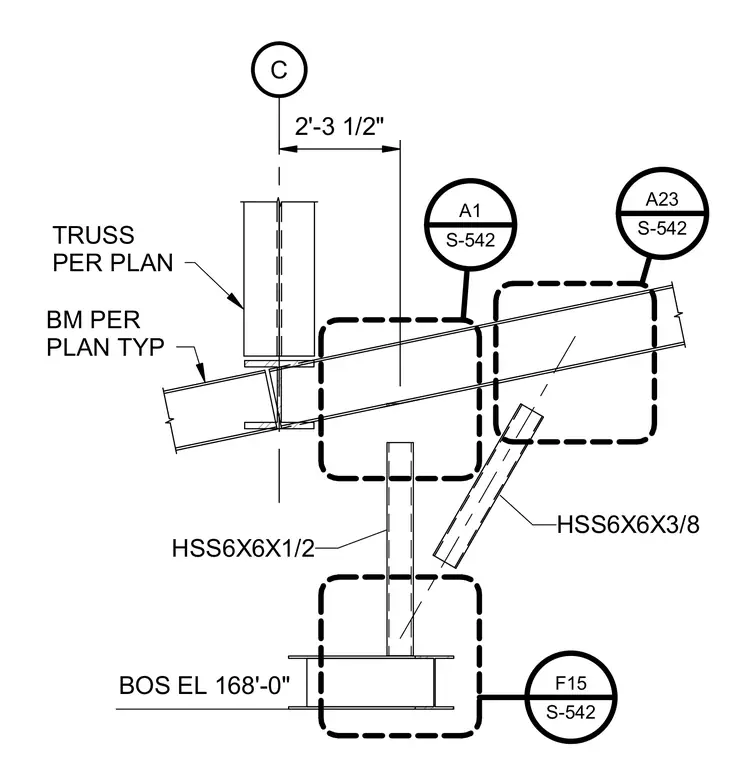

A structural steel truss connects to a beam sized per plan, featuring hollow structural section members that include an HSS 6x6x1/2 vertical member and an HSS 6x6x3/8 diagonal member. The bottom of steel elevation is set at 168'-0" with a horizontal dimension of 2'-3 1/2" from grid line C. Additional reference callouts indicate adjoining details on sheet S-542.
C F15 S-542 HSS6X6X1/2 HSS6X6X3/8 A23 S-542 A1 S-542 BOS EL 168'-0" 2'-3 1/2" TRUSS PER PLAN BM PER PLAN TYP
