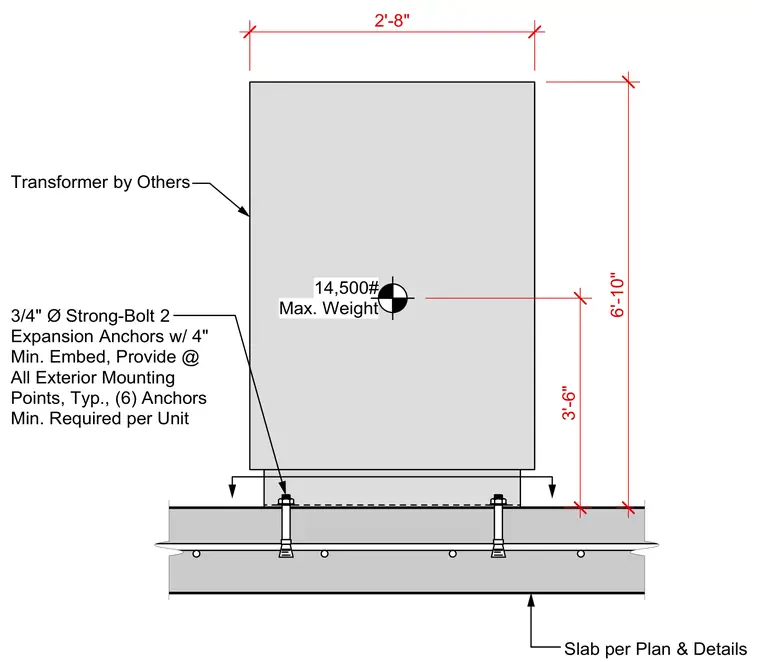

A transformer unit weighing a maximum of 14,500 pounds is mounted directly onto a concrete slab sized per plan and structural details. The equipment base is secured using three-quarter-inch-diameter Strong-Bolt 2 expansion anchors with a four-inch minimum embedment depth. These expansion anchors are specified at all exterior mounting points, with a minimum of six anchors required per unit.
6'-10" 2'-8" 3'-6" 14,500# Max. Weight Transformer by Others Slab per Plan & Details 3/4" Ø Strong-Bolt 2 Expansion Anchors w/ 4" Min. Embed, Provide @ All Exterior Mounting Points, Typ., (6) Anchors Min. Required per Unit
