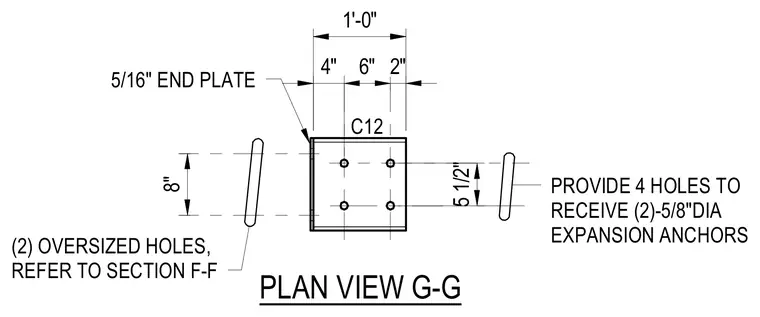

A C12 channel connects to an adjacent assembly using a 5/16-inch end plate welded to the member. Four holes are provided to receive two 5/8-inch-diameter expansion anchors, with two oversized holes requiring coordination with section F-F. Dimensions detail the spacing of the channel and anchor placements across a 1'-0" span.
PLAN VIEW G-G 5/16" END PLATE (2) OVERSIZED HOLES, REFER TO SECTION F-F PROVIDE 4 HOLES TO RECEIVE (2)-5/8"DIA EXPANSION ANCHORS C12 8" 4" 6" 2" 1'-0" 5 1/2"
