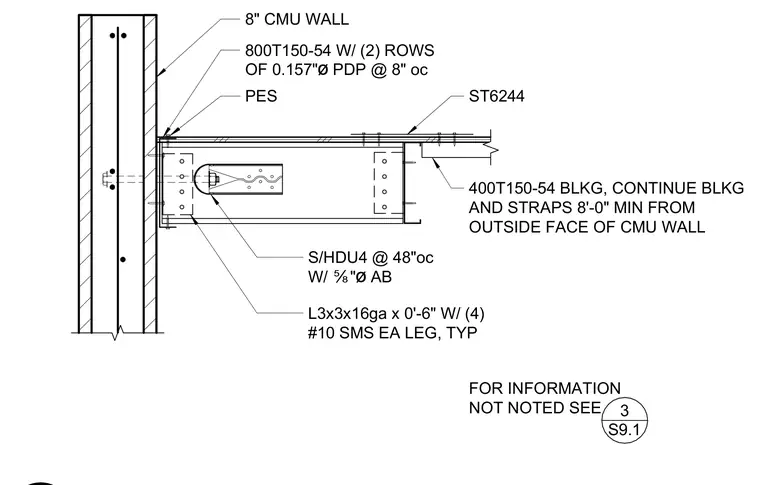

An eight-inch concrete masonry unit wall anchors parallel cold-formed steel framing consisting of an 800T150-54 track member secured with two rows of 0.157-inch diameter power-driven pins at eight inches on center. An S/HDU4 hold-down spaced at forty-eight inches on center connects to the wall using a five-eighths-inch diameter anchor bolt. A 3x3x16-gauge by six-inch angle with four number 10 sheet metal screws on each leg provides additional support. A 400T150-54 blocking member with associated straps continues eight feet minimum from the outside face of the masonry wall.
PES FOR INFORMATION NOT NOTED SEE S/HDU4 @ 48"oc W/ Ñ"ø AB 8" CMU WALL 3 S9.1 L3x3x16ga x 0'-6" W/ (4) #10 SMS EA LEG, TYP ST6244 400T150-54 BLKG, CONTINUE BLKG AND STRAPS 8'-0" MIN FROM OUTSIDE FACE OF CMU WALL 800T150-54 W/ (2) ROWS OF 0.157"ø PDP @ 8" oc
