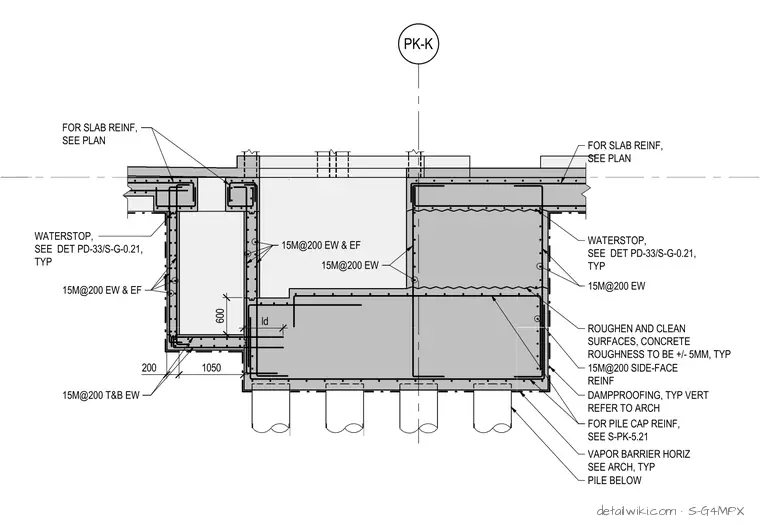

The drawing details a reinforced concrete elevator pit assembly supported by concrete piles below. Key components include continuous concrete slabs and walls with reinforcing steel (such as 15M bars at specified intervals), waterstops for moisture protection, vapor barriers, damp proofing, and roughened construction joints. Dimensions and callouts indicate specific rebar placement, slab reinforcement, and pile cap connections.
Text on the drawing
PK-K 600 200 1050 PILE BELOW VAPOR BARRIER HORIZ SEE ARCH, TYP DAMPPROOFING, TYP VERT REFER TO ARCH FOR SLAB REINF, SEE PLAN WATERSTOP, SEE DET PD-33/S-G-0.21, TYP 15M@200 EW & EF 15M@200 T&B EW FOR PILE CAP REINF, SEE S-PK-5.21 15M@200 EW & EF ROUGHEN AND CLEAN SURFACES, CONCRETE ROUGHNESS TO BE +/- 5MM, TYP 15M@200 SIDE-FACE REINF WATERSTOP, SEE DET PD-33/S-G-0.21, TYP 15M@200 EW 15M@200 EW FOR SLAB REINF, SEE PLAN ld
