Structural · S-G4H4Z

W-Shape Beam Centered on Column Web Shear Tab Connection

Elements

Connections

About this detail

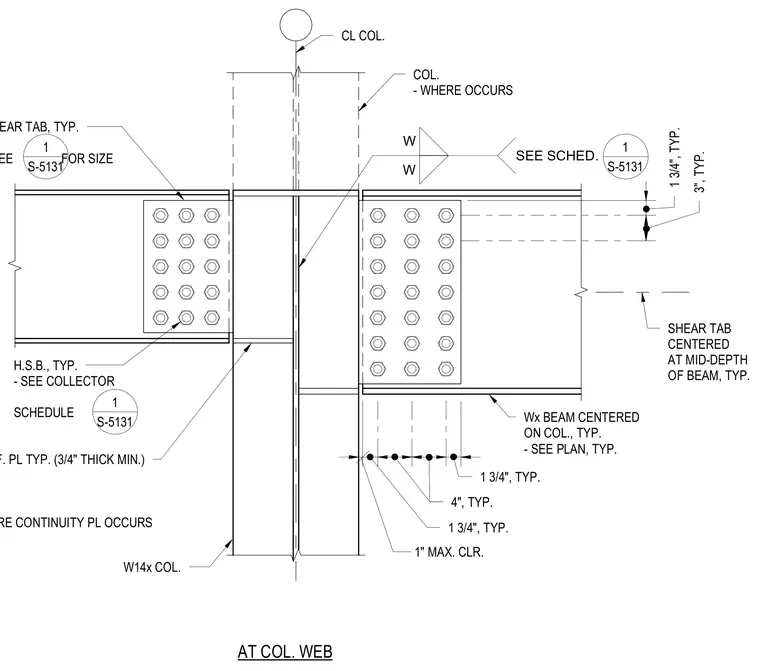

W-shape beams frame centered on the web of a W14x column with a typical one-inch maximum clearance. Beams connect via shear tabs centered at the mid-depth of the beam, secured with high-strength bolts sized per the collector schedule. Stiffener plates with a three-quarter-inch minimum thickness are provided where continuity plates occur. Edge distances and fastener spacings include one and three-quarter inches and four inches typical.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
