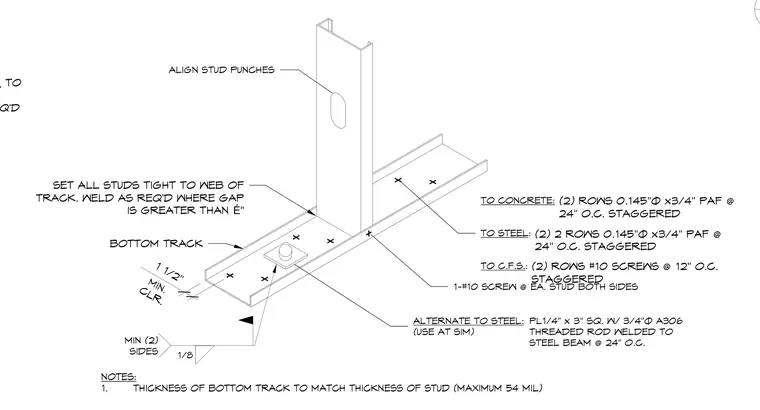

An axonometric detail of the bottom track connection for cold-formed steel framing supported by concrete, structural steel, or another cold-formed steel member. The bottom track is fastened to concrete or structural steel using two staggered rows of zero-point-one-four-five-inch diameter by three-quarter-inch powder-actuated fasteners at twenty-four inches on center, or secured to cold-formed framing with two staggered rows of number-ten screws at twelve inches on center. An alternate steel connection utilizes a one-quarter-inch by three-inch square plate with a three-quarter-inch diameter ASTM A307 threaded rod welded to a steel beam at twenty-four inches on center. Each stud is fastened with one number-ten screw on each side to both flanges of the bottom track and set tight to the web, with field welding required where gaps exceed one-eighth inch. The thickness of the bottom track must match the stud thickness up to a maximum of fifty-four mil, maintaining a one-and-a-half-inch minimum clearance and aligning stud punches.
BOTTOM TRACK 1-#10 SCREW @ EA. STUD BOTH SIDES TO CONCRETE: TO STEEL: TO C.F.S.: SET ALL STUDS TIGHT TO WEB OF TRACK. WELD AS REQ'D WHERE GAP IS GREATER THAN É " NOTES: 1. THICKNESS OF BOTTOM TRACK TO MATCH THICKNESS OF STUD (MAXIMUM 54 MIL) 1 1/2" MIN. CLR. ALIGN STUD PUNCHES ALTERNATE TO STEEL: (USE AT SIM) 1/8 MIN (2) SIDES (2) 2 ROWS 0.145"Ø x3/4" PAF @ 24" O.C. STAGGERED (2) ROWS 0.145"Ø x3/4" PAF @ 24" O.C. STAGGERED (2) ROWS #10 SCREWS @ 12" O.C. STAGGERED PL1/4" x 3" SQ. W/ 3/4"Ø A306 THREADED ROD WELDED TO STEEL BEAM @ 24" O.C. TRANSFER ¯ TO MATCH STUD GAUGE IF REQ'D
