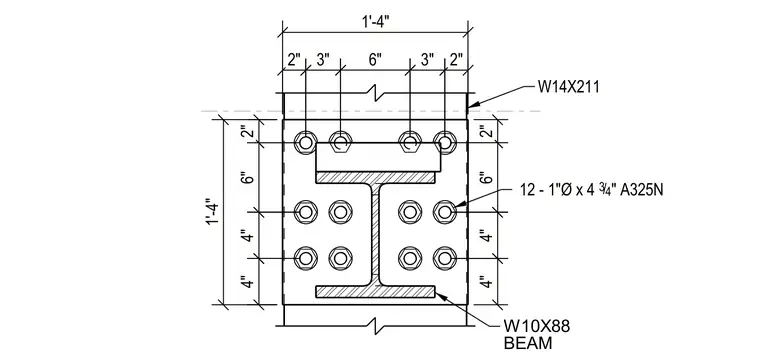

A W10X88 steel floor beam frames into a W14X211 supporting member using a bolted end plate connection. The connection utilizes twelve 1-inch diameter by 4-3/4-inch long A325N high-strength bolts arranged in a symmetrical pattern across the plate. Edge distances and bolt spacings are explicitly detailed with dimensions of 2 inches, 3 inches, 4 inches, and 6 inches, resulting in an overall plate dimension of 1 foot 4 inches square.
2" 3" W14X211 W10X88 BEAM 12 - 1"Ø x 4 3 4 / " A325N 2" 4" 2" 4" 2" 4" 1'-4" 1'-4" 3" 6" 6" 4" 6"
