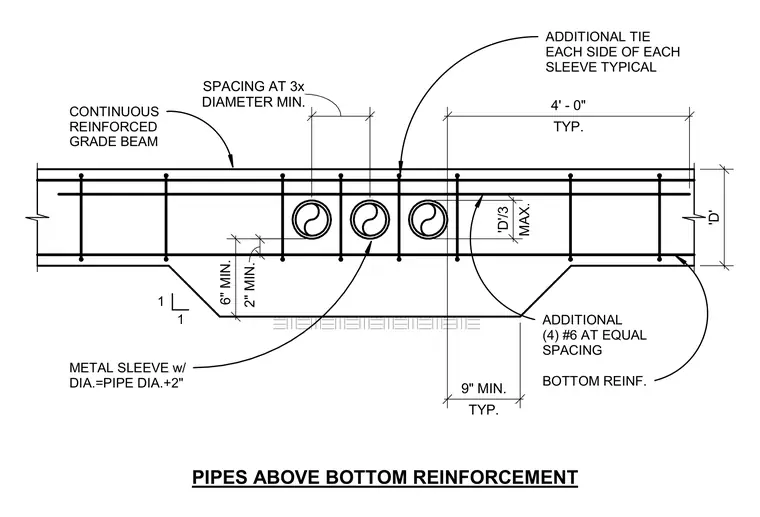

A continuous reinforced grade beam accommodates utility pipes passing through metal sleeves with a diameter equal to the pipe diameter plus two inches. The pipes are positioned in the upper portion of the section with a maximum depth of D/3 from the top, maintaining a minimum two-inch clearance above the bottom reinforcement and a six-inch minimum above the bottom edge. Additional ties are provided on each side of every sleeve at a minimum spacing of three times the sleeve diameter. Four additional number six reinforcing bars are placed at equal spacing over a four-foot typical length below the penetration.
PIPES ABOVE BOTTOM REINFORCEMENT TYP. 9" MIN. 6" MIN. 2" MIN. TYP. 4' - 0" BOTTOM REINF. METAL SLEEVE w/ DIA.=PIPE DIA.+2" DIAMETER MIN. SPACING AT 3x ADDITIONAL TIE EACH SIDE OF EACH SLEEVE TYPICAL CONTINUOUS REINFORCED GRADE BEAM ADDITIONAL (4) #6 AT EQUAL SPACING 'D' MAX. 'D'/3 1 1
