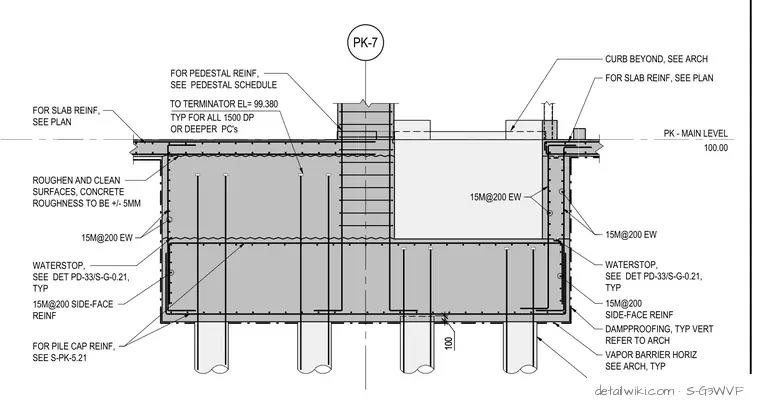

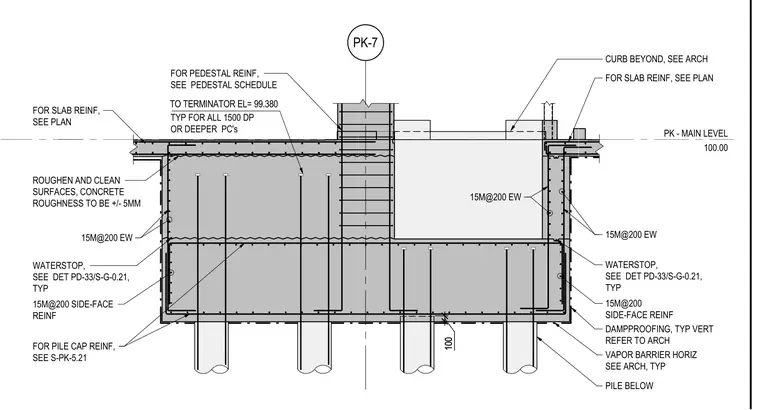

The drawing illustrates a reinforced concrete elevator pit assembly integrated with a foundation system of piles and pile caps. Key components include vertical and horizontal reinforcing bars (such as 15M@200 EW), waterstops at construction joints, dampproofing, and vapor barriers. A central column pedestal rises from the pit base, and notes direct the user to structural plans and schedules for specific reinforcement details.
Text on the drawing
PK - MAIN LEVEL 100.00 PK-7 100 PILE BELOW VAPOR BARRIER HORIZ SEE ARCH, TYP 100 DAMPPROOFING, TYP VERT REFER TO ARCH CURB BEYOND, SEE ARCH TO TERMINATOR EL= 99.380 TYP FOR ALL 1500 DP OR DEEPER PC's FOR SLAB REINF, SEE PLAN 15M@200 EW WATERSTOP, SEE DET PD-33/S-G-0.21, TYP 15M@200 SIDE-FACE REINF FOR PILE CAP REINF, SEE S-PK-5.21 ROUGHEN AND CLEAN SURFACES, CONCRETE ROUGHNESS TO BE +/- 5MM FOR SLAB REINF, SEE PLAN 15M@200 EW WATERSTOP, SEE DET PD-33/S-G-0.21, TYP 15M@200 SIDE-FACE REINF 15M@200 EW FOR PEDESTAL REINF, SEE PEDESTAL SCHEDULE
