Structural · S-G3SY8

Typical Truss Gusset Plate Connection with Double Angle Web Members

Materials

Steel

Elements

Trusses Connections / Plates

Connections

Gusset Plate Welded Connection Bolted Connection Rebar Splice / Development

About this detail

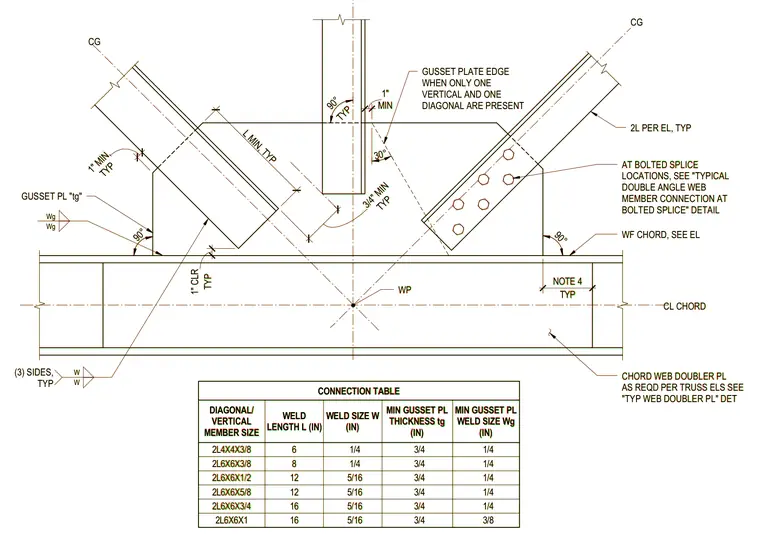

Double angle web members connect to a gusset plate that is welded to a wide-flange chord member. The connection features a minimum one-inch clearance and a thirty-degree beveled gusset plate edge when a single vertical and diagonal are present. A connection table specifies minimum gusset plate thickness, weld sizes, and weld lengths for various double angle sizes ranging from 2L4x4x3/8 to 2L6x6x1. Chord web doubler plates are included as required per truss elevations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
