Electrical · S-G3HBM

Typical Sliding Gate Grounding Detail

Materials

Glass / Glazing Metal (misc.)

Elements

Columns Connections / Plates Roof / Floor Openings

Connections

Welded Connection

About this detail

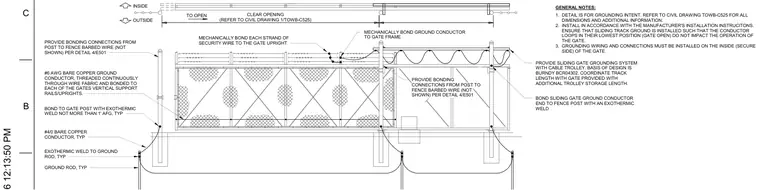

A sliding gate grounding system is installed with a cable trolley using a basis of design Burndy BCR04302, with track length coordinated with the gate and additional trolley storage length. A number four slash zero bare copper conductor is connected via exothermic weld to a ground rod and bonded to the gate post not more than one foot above finished grade. A number six American Wire Gauge bare copper ground conductor is threaded continuously through the wire fabric and bonded to each of the gate's vertical support rails and uprights. Security wire strands are mechanically bonded to the gate upright, and the ground conductor is mechanically bonded to the gate frame. Additional bonding connections are provided from the post to the fence barbed wire per detail four on sheet E501.
