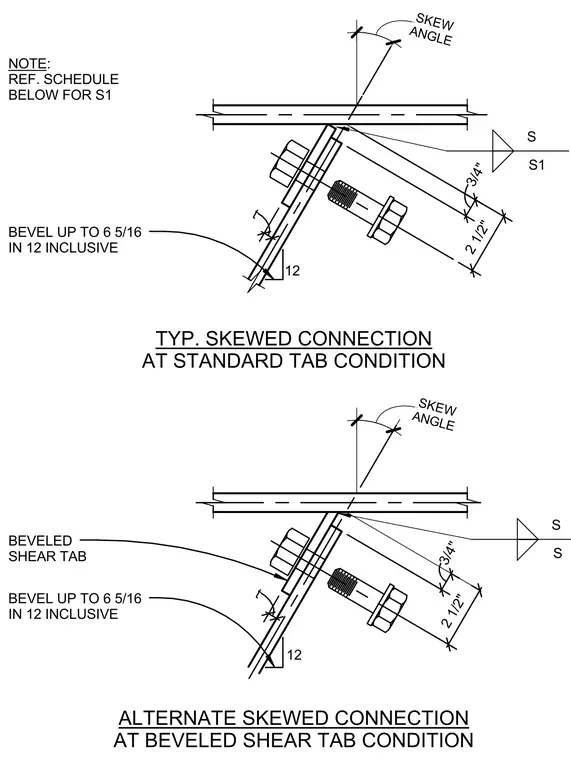

Typical skewed framing connections utilize shear tabs for structural steel members. The standard tab condition accommodates a skew angle with a bevel up to six and five-sixteenths inches in twelve inches inclusive, referencing a schedule for sizing parameter S1. The alternate connection details a beveled shear tab condition with matching bevel parameters and standard edge clearances of three-quarters of an inch and two and one-half inches. High-strength bolts fasten the web of the supported member to the plate, with weld symbols S and S1 indicating the required shop and field welds.
12 12 TYP. SKEWED CONNECTION AT STANDARD TAB CONDITION NOTE: REF. SCHEDULE BELOW FOR S1 BEVEL UP TO 6 5/16 IN 12 INCLUSIVE 3/4" 2 1/2" t ALTERNATE SKEWED CONNECTION AT BEVELED SHEAR TAB CONDITION BEVEL UP TO 6 5/16 IN 12 INCLUSIVE 3/4" 2 1/2" t ANGLE SKEW ANGLE SKEW S1 S S S BEVELED SHEAR TAB
