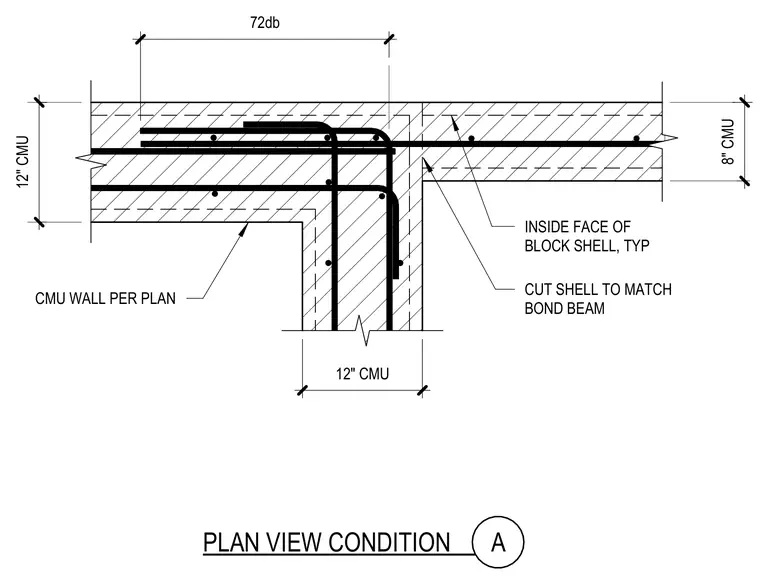

A twelve-inch concrete masonry unit wall intersects an eight-inch concrete masonry unit wall with continuous horizontal reinforcing bars and hooked corner bars. The block shell is cut to match the bond beam per plan requirements, maintaining a seventy-two-inch dimension zone. The inside face of the block shell is aligned typically at the wall junction.
PLAN VIEW CONDITION A CUT SHELL TO MATCH BOND BEAM 12" CMU 8" CMU 12" CMU CMU WALL PER PLAN 72db INSIDE FACE OF BLOCK SHELL, TYP
