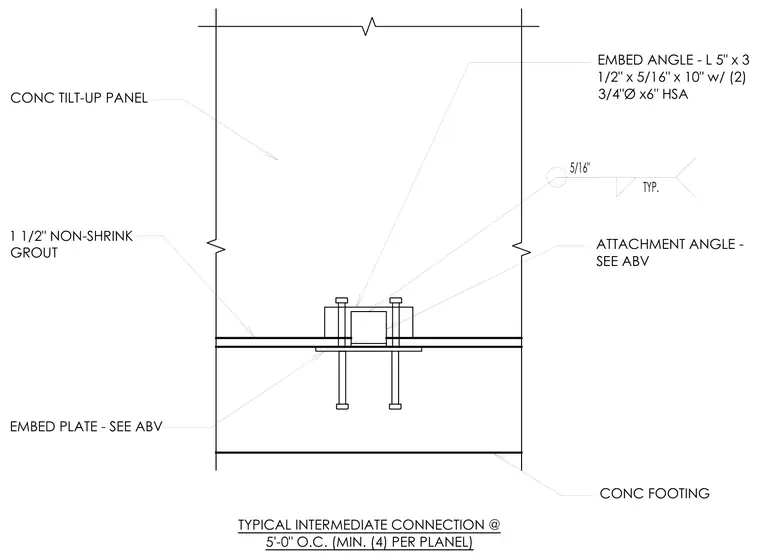

A concrete tilt-up wall panel connects to a concrete footing using an embed plate and an attachment angle anchored by two three-quarter-inch diameter by six-inch headed stud anchors. The five-inch by three-and-a-half-inch by five-sixteenth-inch by ten-inch attachment angle is secured with a five-sixteenth-inch typical fillet weld. A one-and-a-half-inch layer of non-shrink grout fills the gap between the tilt-up panel and the concrete footing. Spacing is maintained at five feet on center with a minimum of four connections per panel.
TYPICAL INTERMEDIATE CONNECTION @ 5'-0" O.C. (MIN. (4) PER PLANEL) TYP. 5/16" ATTACHMENT ANGLE - SEE ABV EMBED ANGLE - L 5" x 3 1/2" x 5/16" x 10" w/ (2) 3/4"Ø x6" HSA EMBED PLATE - SEE ABV 1 1/2" NON-SHRINK GROUT CONC TILT-UP PANEL CONC FOOTING
