Structural · S-G33KD

Hanging Hss Column To Beam Detail

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Roofs Decks

Connections

HSS Connection Welded Connection Bolted Connection Deck Attachment

About this detail

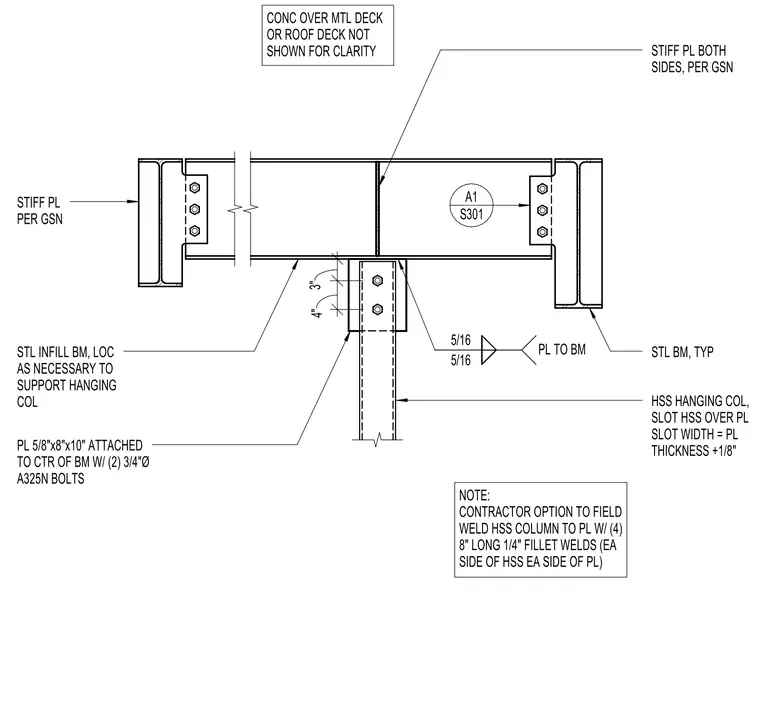

A hollow structural section hanging column is slotted over a five-eighths by eight by ten inch plate that is attached to the center of a steel infill beam with two three-quarters-inch diameter A325N bolts. The slot width is sized to the plate thickness plus one-eighth inch. Stiffener plates are provided on both sides per general structural notes, and the infill beam is located as necessary to support the hanging column. As a contractor option, the HSS column can be field welded to the plate with four eight-inch long quarter-inch fillet welds on each side of the HSS and each side of the plate. Concrete over metal deck or roof deck is omitted for clarity, and typical steel beams frame into the assembly.
