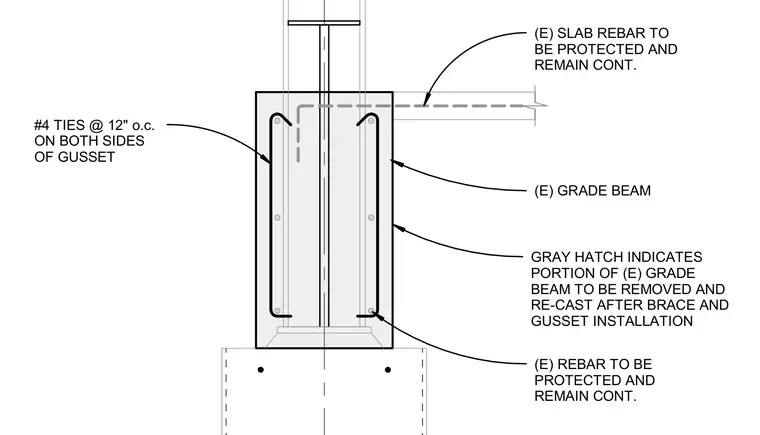

An existing concrete grade beam requires partial removal and re-casting after the brace and gusset plate installation. Existing slab and grade beam reinforcement must be protected and remain continuous through the connection. Number four ties are placed at twelve inches on center on both sides of the gusset.
(E) SLAB REBAR TO BE PROTECTED AND REMAIN CONT. (E) GRADE BEAM GRAY HATCH INDICATES PORTION OF (E) GRADE BEAM TO BE REMOVED AND RE-CAST AFTER BRACE AND GUSSET INSTALLATION (E) REBAR TO BE PROTECTED AND REMAIN CONT. #4 TIES @ 12" o.c. ON BOTH SIDES OF GUSSET
