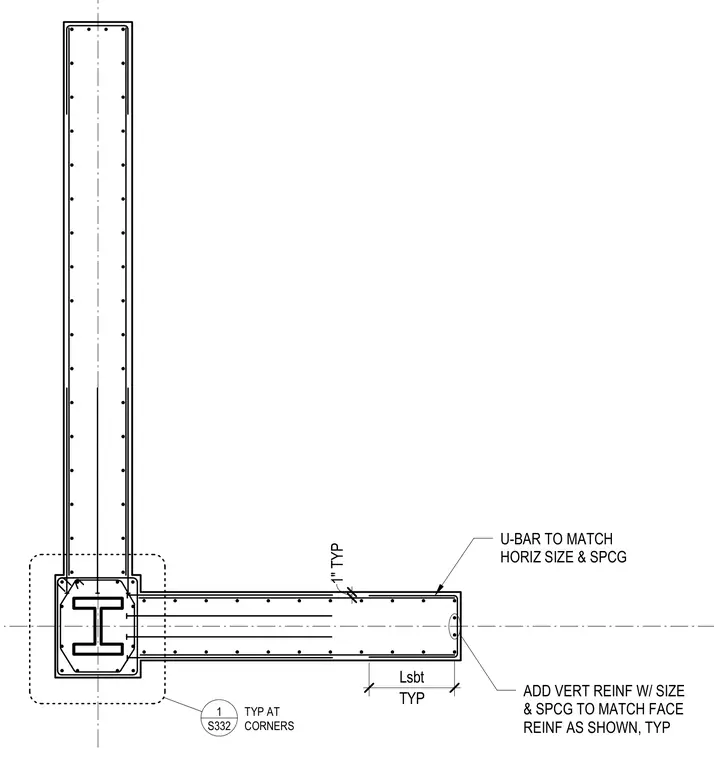

At structural concrete wall corners, additional vertical reinforcement is added with size and spacing matching the face reinforcement as shown. U-bars are detailed to match the horizontal bar size and spacing typically. A steel column section is embedded at the corner junction.
S332 1 TYP AT CORNERS ADD VERT REINF W/ SIZE & SPCG TO MATCH FACE REINF AS SHOWN, TYP U-BAR TO MATCH HORIZ SIZE & SPCG TYP Lsbt 1" TYP
