Concrete walls require specific reinforcing bar layouts designated as Type A, Type B, and Type C based on wall thickness and structural loading. Type A features vertical and horizontal reinforcing bars on both the inside and outside faces. Type B utilizes vertical bars on the inside face combined with vertical and horizontal bars on the outside face. Type C provides a single curtain of vertical and horizontal bars centered within the wall thickness. All horizontal and vertical reinforcing bars are spliced using a Class B tension splice.

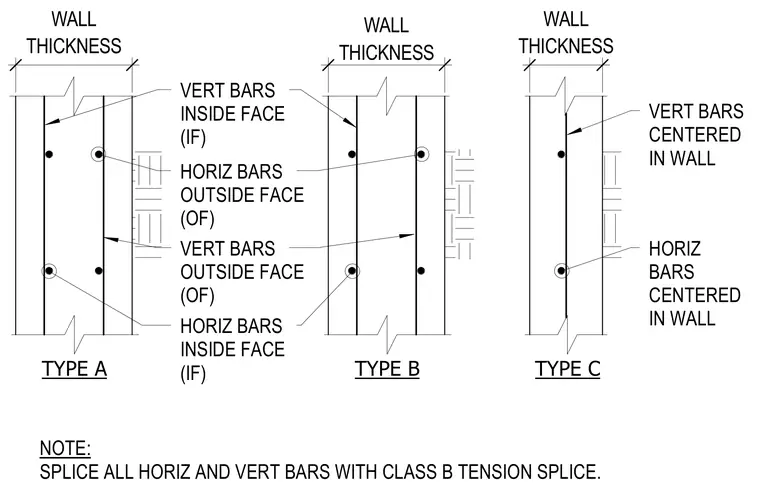

THICKNESS WALL THICKNESS WALL THICKNESS WALL VERT BARS CENTERED IN WALL HORIZ BARS CENTERED IN WALL VERT BARS INSIDE FACE (IF) VERT BARS OUTSIDE FACE (OF) HORIZ BARS OUTSIDE FACE (OF) HORIZ BARS INSIDE FACE (IF) TYPE A TYPE B TYPE C NOTE: SPLICE ALL HORIZ AND VERT BARS WITH CLASS B TENSION SPLICE.
