A structural steel base plate is anchored to a concrete foundation using a headed anchor bolt or threaded bar with heavy hex nuts at both ends. A leveling nut is positioned beneath the base plate, and non-shrink grout fills the space to the top of concrete elevation per the plan. Washers are provided at the top and bottom, with spoiled threads specified two places below the nut. Where oversize holes occur in base plates for columns in braced or moment frames, welded plate washers per AISC Design Guide 1 are required.

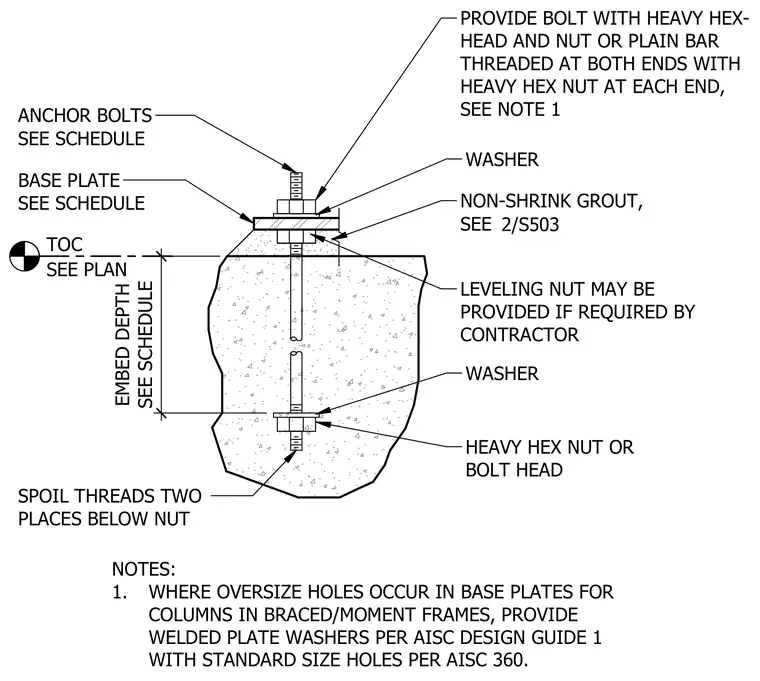

PROVIDE BOLT WITH HEAVY HEX- HEAD AND NUT OR PLAIN BAR THREADED AT BOTH ENDS WITH HEAVY HEX NUT AT EACH END, SEE NOTE 1 NON-SHRINK GROUT, SEE LEVELING NUT MAY BE PROVIDED IF REQUIRED BY CONTRACTOR HEAVY HEX NUT OR BOLT HEAD EMBED DEPTH SEE SCHEDULE BASE PLATE SEE SCHEDULE ANCHOR BOLTS SEE SCHEDULE SPOIL THREADS TWO PLACES BELOW NUT WASHER 2/S503 WASHER TOC SEE PLAN NOTES: 1. WHERE OVERSIZE HOLES OCCUR IN BASE PLATES FOR COLUMNS IN BRACED/MOMENT FRAMES, PROVIDE WELDED PLATE WASHERS PER AISC DESIGN GUIDE 1 WITH STANDARD SIZE HOLES PER AISC 360.
