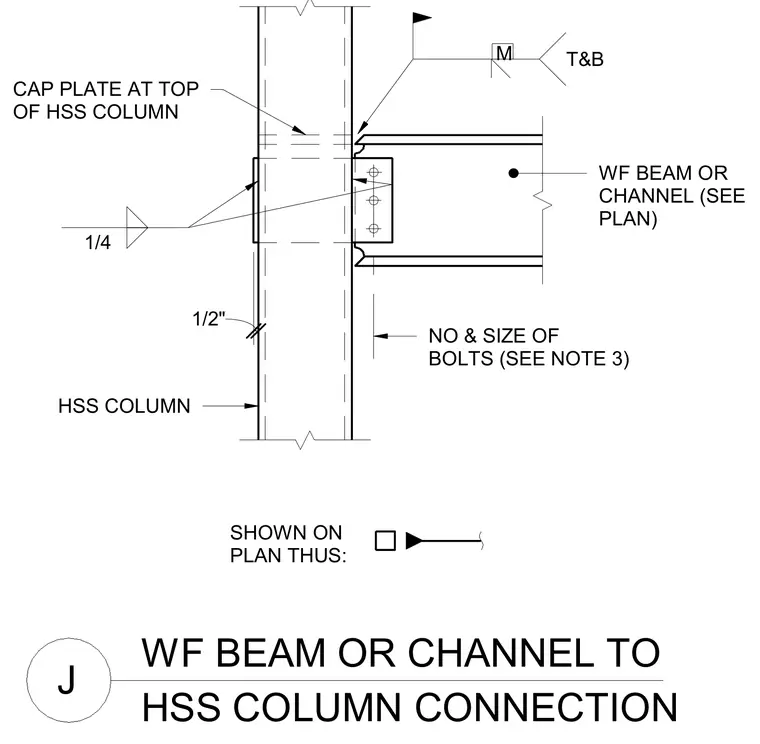

A wide flange beam or channel connects to an HSS column using a shear plate welded to the column face with a one-quarter inch fillet weld and bolted to the beam web with bolts sized per plan. A cap plate is welded to the top of the HSS column with a half-inch weld. A separate weld symbol indicates a top and bottom connection designated with an M mark.
WF BEAM OR CHANNEL TO J HSS COLUMN CONNECTION NO & SIZE OF BOLTS (SEE NOTE 3) HSS COLUMN WF BEAM OR CHANNEL (SEE PLAN) CAP PLATE AT TOP OF HSS COLUMN T&B 1/2" 1/4 M SHOWN ON PLAN THUS:
