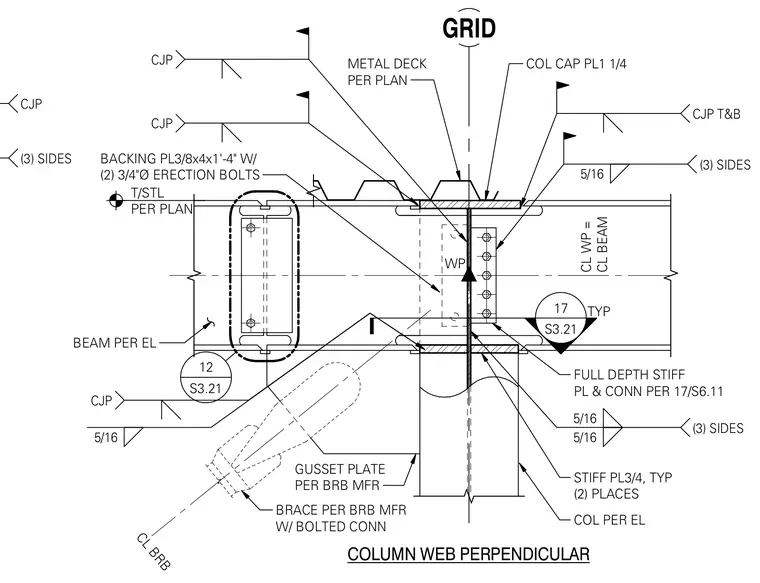

A structural steel connection features a buckling-restrained brace framing into a gusset plate welded to a column and beam intersection. The column is capped with a one-and-one-quarter-inch plate welded with a complete joint penetration weld on the top and bottom, and five-sixteenth-inch fillet welds on three sides. The beam connects with full-depth stiffener plates and three-quarter-inch backing plates secured by two three-quarter-inch diameter erection bolts. A gusset plate supplied per the buckling-restrained brace manufacturer connects the brace with a bolted connection, aligning the brace centerline with the work point at the beam centerline. Three-quarter-inch stiffener plates are provided in two places with five-sixteenth-inch fillet welds on three sides.
GRID CJP (3) SIDES CJP CJP CJP 5/16 BACKING PL3/8x4x1'-4" W/ (2) 3/4"Ø ERECTION BOLTS BEAM PER EL GUSSET PLATE PER BRB MFR BRACE PER BRB MFR W/ BOLTED CONN CL BRB COLUMN WEB PERPENDICULAR T/STL PER PLAN S3.21 12 WP S3.21 17 METAL DECK PER PLAN COL CAP PL1 1/4 CJP T&B 5/16 (3) SIDES CL WP = CL BEAM TYP FULL DEPTH STIFF PL & CONN PER 17/S6.11 STIFF PL3/4, TYP (2) PLACES COL PER EL 5/16 5/16 (3) SIDES
