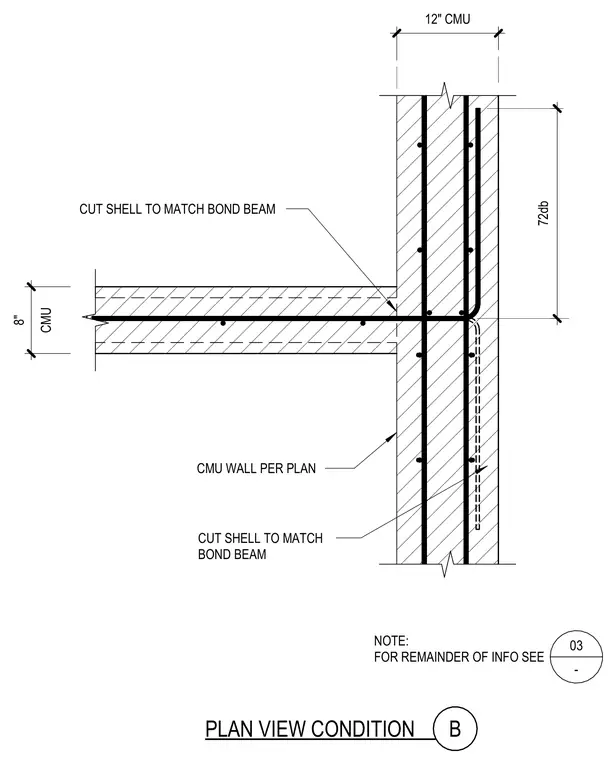

An eight-inch concrete masonry unit wall intersects a twelve-inch concrete masonry unit wall with masonry shells cut to match the bond beam. Vertical and horizontal reinforcing bars are detailed within the cores and bond beams at the junction. The intersecting masonry units align per the structural plan requirements.
PLAN VIEW CONDITION B NOTE: FOR REMAINDER OF INFO SEE CUT SHELL TO MATCH BOND BEAM 12" CMU 72db CMU 8" 03 - CMU WALL PER PLAN CUT SHELL TO MATCH BOND BEAM
