Structural · S-G28EJ

Splice and Development Stagger Detail

Materials

Concrete

Elements

Reinforcing

Connections

Welded Connection Rebar Splice / Development

About this detail

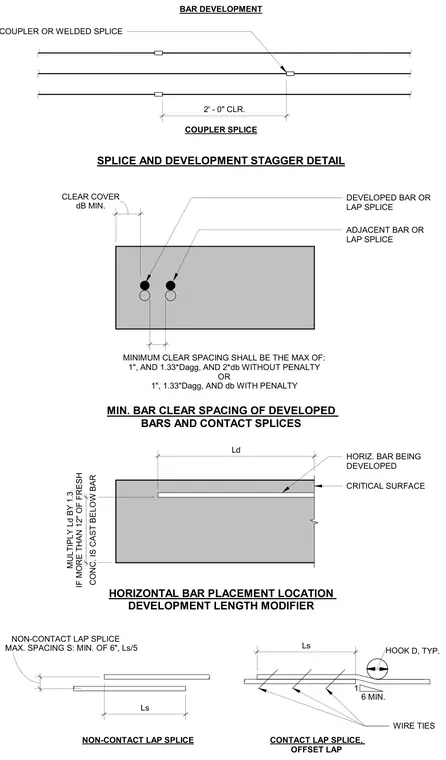

This structural detail outlines requirements for reinforcing bar splices and development lengths within concrete members, including staggered couplers and welded splices. It details non-contact lap splices requiring a maximum spacing of six inches or one-fifth of the lap length, alongside contact lap splices tied with wire ties and maintaining a minimum six-inch offset. Clear spacing criteria between bars are established based on bar diameter and aggregate size, applying development length modifiers when more than twelve inches of fresh concrete is cast below the horizontal bar. Hook dimensions and critical surface locations are also specified.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
