An HSS6x6 tie beam connects horizontally to an HSS column post using an HSS8x6x3/8 horizontal stub with a three-inch slotted hole and a one-inch maximum gap, secured by two seven-eighth-inch diameter ASTM A325N through bolts. Angle clips measuring L8x6x3/8 by zero foot six inches long are placed on each side with six-inch slotted holes at the leg in contact with the beam flange. Four seven-eighth-inch diameter ASTM A325N bolts fasten the kicker at the centerline of the HSS per detail six on sheet S5-202. The beam connects to a concrete metal deck slab above.

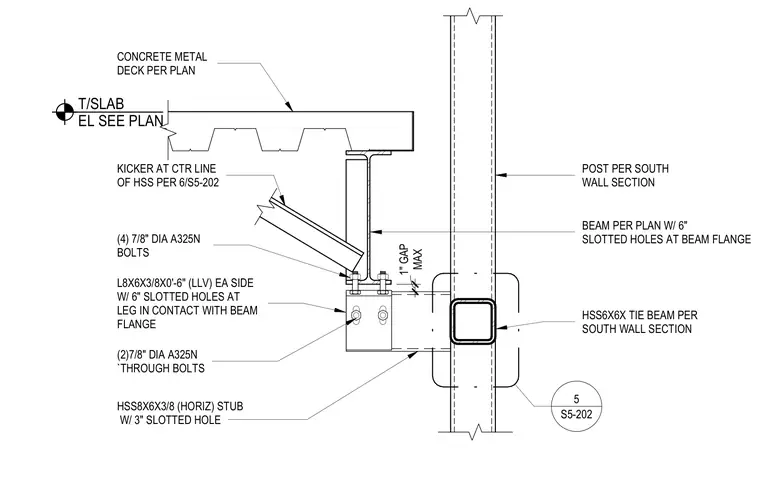

POST PER SOUTH WALL SECTION T/SLAB EL SEE PLAN KICKER AT CTR LINE OF HSS PER 6/S5-202 (4) 7/8" DIA A325N BOLTS L8X6X3/8X0'-6" (LLV) EA SIDE W/ 6" SLOTTED HOLES AT LEG IN CONTACT WITH BEAM FLANGE (2)7/8" DIA A325N `THROUGH BOLTS HSS8X6X3/8 (HORIZ) STUB W/ 3" SLOTTED HOLE MAX 1" GAP HSS6X6X TIE BEAM PER SOUTH WALL SECTION BEAM PER PLAN W/ 6" SLOTTED HOLES AT BEAM FLANGE CONCRETE METAL DECK PER PLAN S5-202 5
