Structural · S-FZZ7M

Hollow Structural Section Column and Floor Framing Connections

Materials

Steel Timber / Wood Metal (misc.)

Elements

Columns Walls Floors / Slabs Decks Foundations / Footings Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

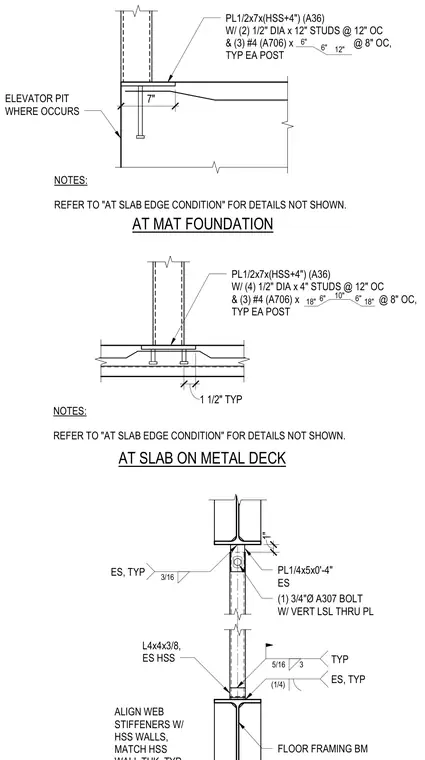

These structural connection details illustrate hollow structural section columns anchoring into a concrete mat foundation, bearing against a slab on metal deck, and framing into intermediate floor beams with welded and bolted plates. The base conditions feature ASTM A36 steel plates welded with shear studs and reinforcing bars embedded in the concrete. The intermediate floor framing detail utilizes L4x4x3/8 angles, 3/4-inch diameter A307 bolts, and 1/4-inch and 5/16-inch fillet welds on each side with vertical slot plates. Web stiffeners are aligned with the hollow structural section walls as specified on the drawing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
