Structural · S-FZRRR

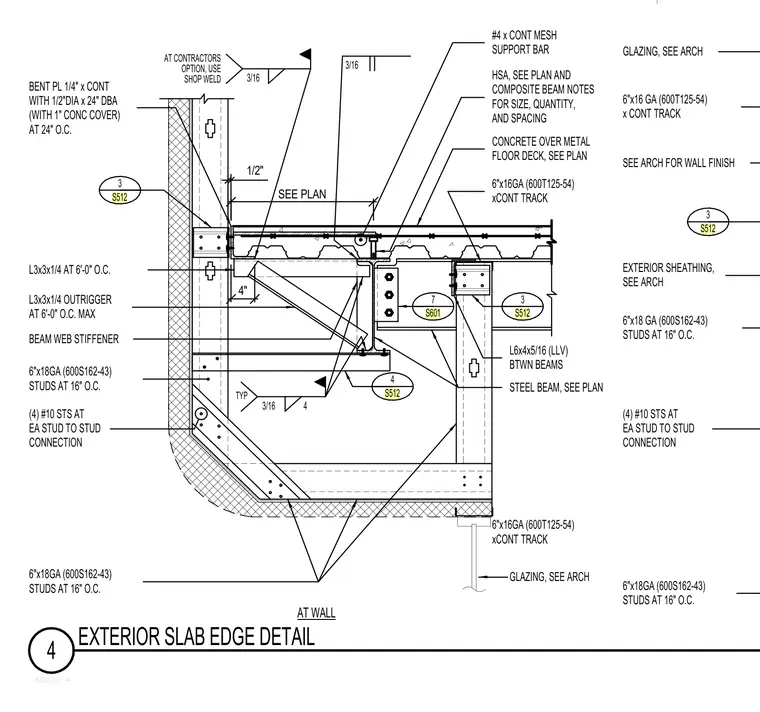

Exterior Slab Edge Detail

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)Composite

Elements

Beams Walls Floors / Slabs Decks Arches Connections / Plates

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

The assembly connects a concrete floor slab over a metal deck to a structural steel beam and outrigger system. A continuous bent plate with threaded dowel anchors at twenty-four inches on center secures the slab edge, while headed stud anchors tie the concrete to the composite beam. An L3x3x1/4 outrigger at six feet on center provides cantilevered support with an optional shop-welded beam web stiffener. Cold-formed steel framing studs at sixteen inches on center with continuous tracks frame the exterior wall below and at the spandrel, joined by four number ten self-tapping screws at each stud-to-stud connection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
