Structural · S-FZK6K

Pile Cap Foundation Details PC2X and PC3X

Elements

About this detail

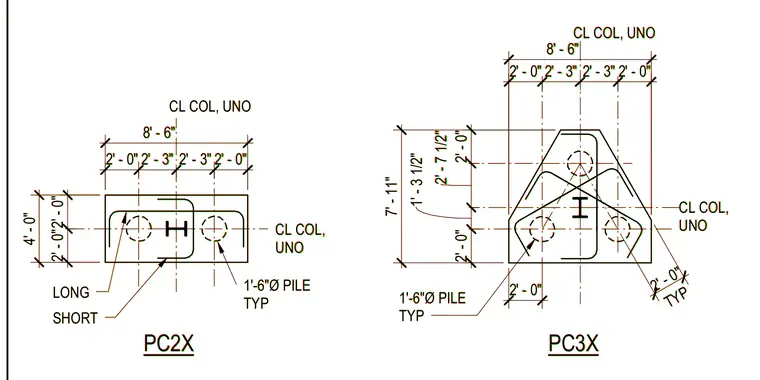

These structural foundation details show two pile cap configurations designated PC2X and PC3X, each supported by typical one-foot six-inch diameter piles. The rectangular PC2X pile cap measures four feet by eight feet six inches with symmetric pile placement and column centerlines marked UNO. The trapezoidal PC3X pile cap spans seven feet eleven inches by eight feet six inches with specific edge dimensions and reinforcing details. Both configurations center on the column centerline unless otherwise noted and specify pile spacings and clear dimensions for structural load distribution.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
