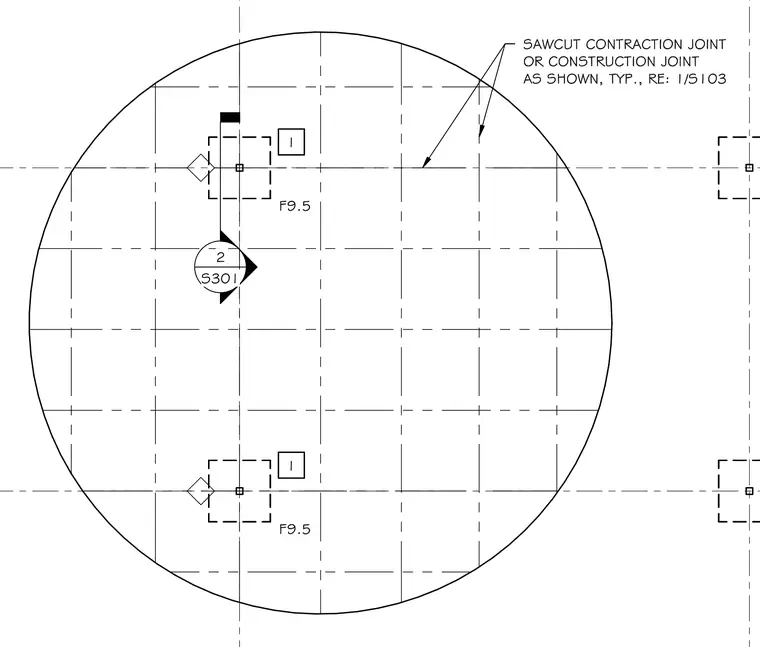

Sawcut contraction joints or construction joints are laid out across the concrete slab on grade typically as shown, with reference to sheet S103.
SAWCUT CONTRACTION JOINT OR CONSTRUCTION JOINT AS SHOWN, TYP., RE: 1/S103 F9.5 F9.5 1 1 2 S301
