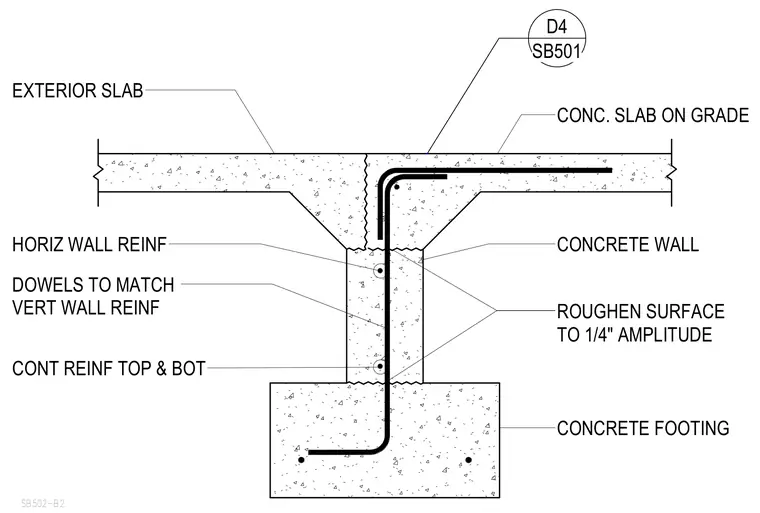

A concrete slab on grade and exterior slab meet above a concrete wall supported by a concrete footing. Horizontal wall reinforcement and vertical wall dowels match the vertical wall reinforcement requirements, with surfaces roughened to one-quarter inch amplitude at construction joints. Continuous reinforcement is provided at the top and bottom of the concrete slab.
SB502-B2 CONCRETE WALL HORIZ WALL REINF CONCRETE FOOTING ROUGHEN SURFACE TO 1/4" AMPLITUDE DOWELS TO MATCH VERT WALL REINF CONT REINF TOP & BOT CONC. SLAB ON GRADE EXTERIOR SLAB SB501 D4
