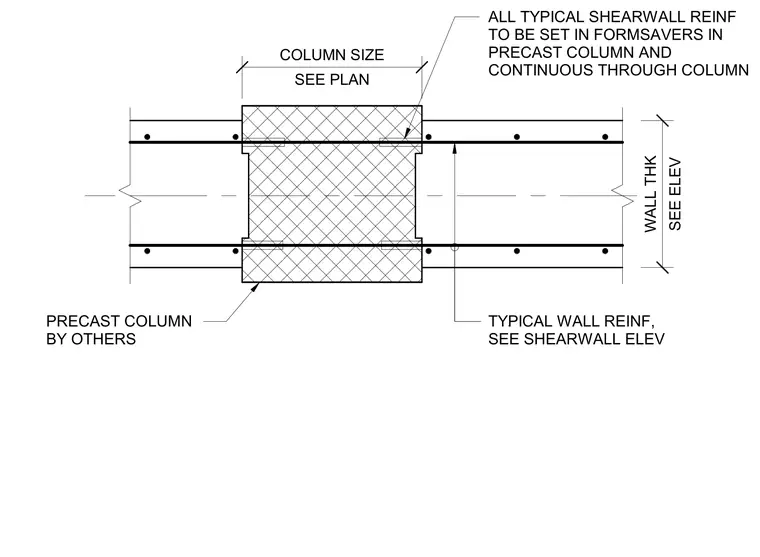

A precast concrete column is embedded within a concrete shearwall, with typical wall reinforcement continuing through the column using mechanical couplers. The wall thickness and column size are sized per plan and elevation drawings. Typical shearwall reinforcement is set in formsavers within the precast column to maintain structural continuity across the joint. The precast column itself is provided by others.
PRECAST COLUMN BY OTHERS SEE ELEV WALL THK TYPICAL WALL REINF, SEE SHEARWALL ELEV . ALL TYPICAL SHEARWALL REINF TO BE SET IN FORMSAVERS IN PRECAST COLUMN AND CONTINUOUS THROUGH COLUMN SEE PLAN COLUMN SIZE
