A ledger and truss seat connection is anchored with welded headed studs. The assembly features two three-quarter-inch-diameter welded headed studs spaced at twenty-four inches on center maximum between joists. Each truss location incorporates six three-quarter-inch-diameter welded headed studs.

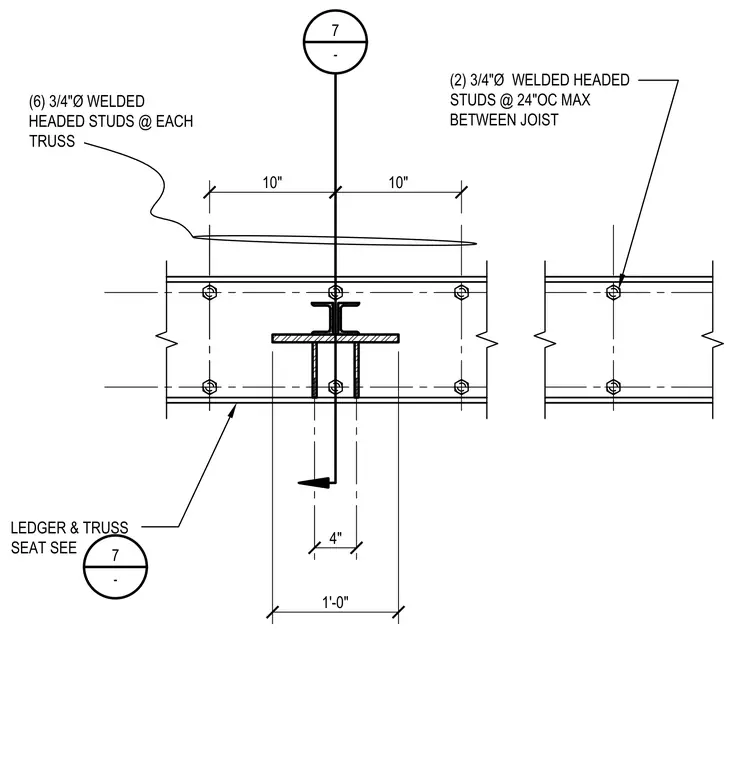

10" LEDGER & TRUSS SEAT SEE (2) 3/4"Ø WELDED HEADED STUDS @ 24"OC MAX BETWEEN JOIST 10" (6) 3/4"Ø WELDED HEADED STUDS @ EACH TRUSS 1'-0" 7 - 4" 7 -
