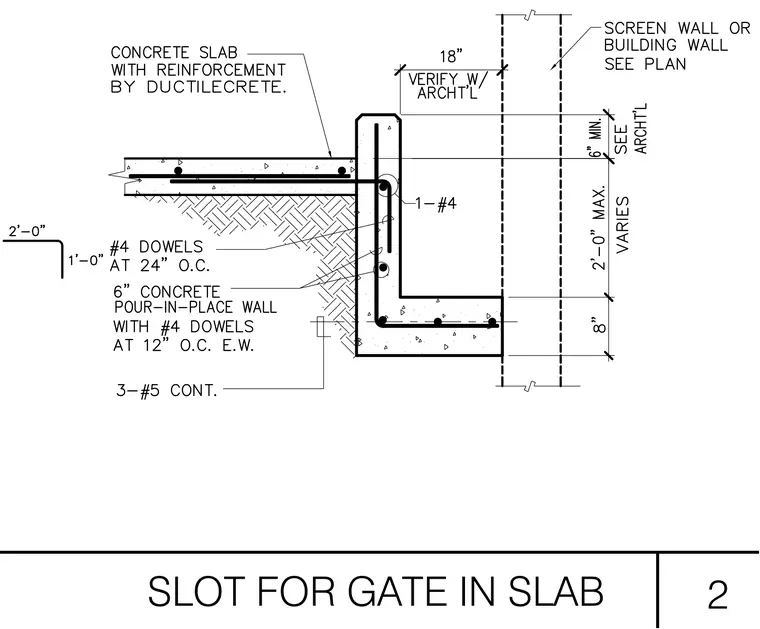

A concrete slab with reinforcement connects to a six-inch concrete pour-in-place wall forming a recess slot for a gate. The assembly incorporates three continuous number five bars horizontally and number four dowels spaced at twenty-four inches on center vertically. Additional number four dowels run at twelve inches on center each way within the concrete wall. An eighteen-inch clearance dimension is verified with architectural plans alongside vertical height variations.
