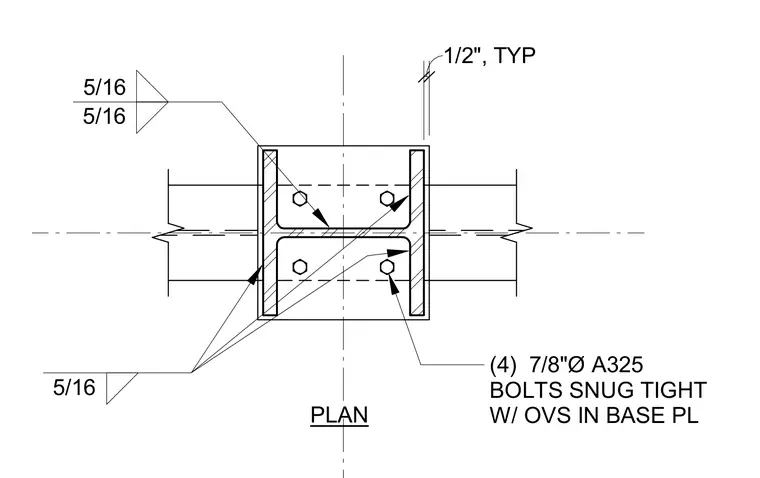

Four seven-eighths inch diameter A325 bolts secure the steel column base plate through oversized holes tightened snug. Five-sixteenth inch fillet welds connect the steel column flanges to the base plate. A typical one-half inch clearance is maintained.
