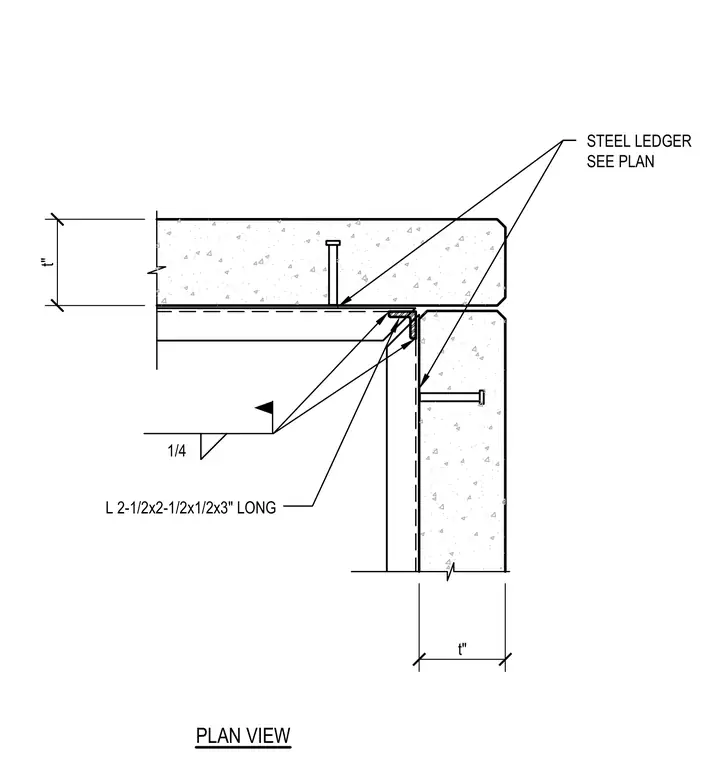

A mitered corner detail joins two concrete panels meeting at a right angle with a mitered joint. A steel ledger angle sized at 2-1/2 inches by 2-1/2 inches by 1/2 inch and 3 inches long provides support, secured with a quarter-inch fillet weld. Concrete panels feature embedded headed studs for anchorage.
