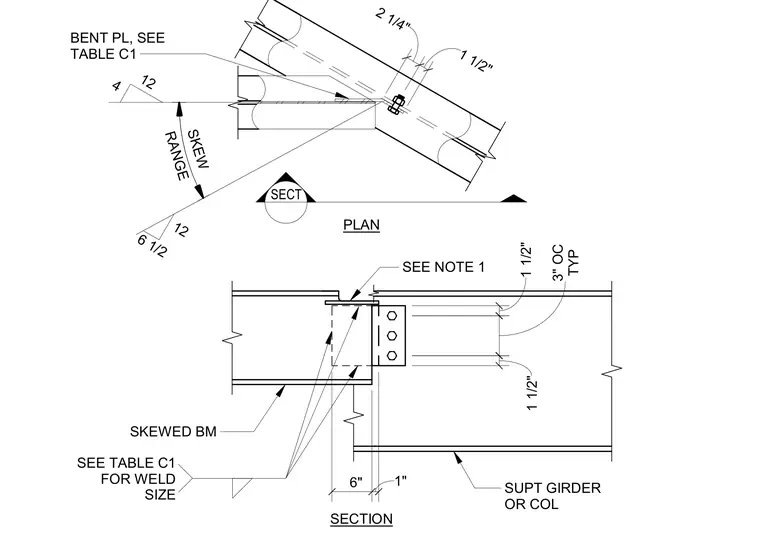

This connection details a skewed structural steel beam framing into a supporting girder or column using a bent plate. The bent plate connects the web of the skewed beam to the support with welded joints sized per table C1 and a bolted web connection spaced at three inches on center. The skew angle accommodates a specific range from four-in-twelve to six-and-a-half-in-twelve. Clearances and edge distances are explicitly dimensioned for fabrication and erection.
SECT 1 1/2" 2 1/4" 6" 1" 1 1/2" 1 1/2" TYP 3" OC SKEWED BM SUPT GIRDER OR COL SEE NOTE 1 BENT PL, SEE TABLE C1 SECTION PLAN 28° SKEW RANGE 6 1/2 12 4 12 SEE TABLE C1 FOR WELD SIZE
