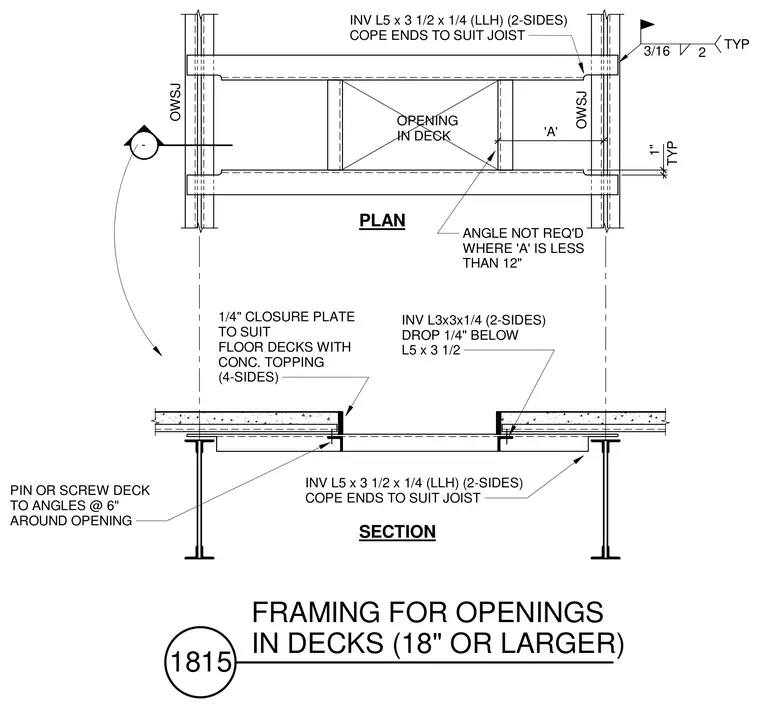

Framing configurations for openings eighteen inches or larger in metal floor decks with concrete toppings utilize inverted angle headers spanning between open web steel joists, with ends coped to suit the joist profile. An inverted angle sized at three by three by one-quarter inches drops one-quarter inch below the primary five-inch angle on two sides. A one-quarter-inch closure plate lines all four sides of the deck opening, bearing on the supporting angles. Pins or screws attach the floor deck to the perimeter angles at six inches on center. The secondary angle is omitted where dimension A is less than twelve inches.
OWSJ OPENING IN DECK OWSJ TYP SECTION PLAN 1/4" CLOSURE PLATE TO SUIT FLOOR DECKS WITH CONC. TOPPING (4-SIDES) INV L5 x 3 1/2 x 1/4 (LLH) (2-SIDES) COPE ENDS TO SUIT JOIST INV L3x3x1/4 (2-SIDES) DROP 1/4" BELOW L5 x 3 1/2 INV L5 x 3 1/2 x 1/4 (LLH) (2-SIDES) COPE ENDS TO SUIT JOIST 3/16 2 ANGLE NOT REQ'D WHERE 'A' IS LESS THAN 12" TYP - 'A' 1" PIN OR SCREW DECK TO ANGLES @ 6" AROUND OPENING 1815 FRAMING FOR OPENINGS IN DECKS (18" OR LARGER)
