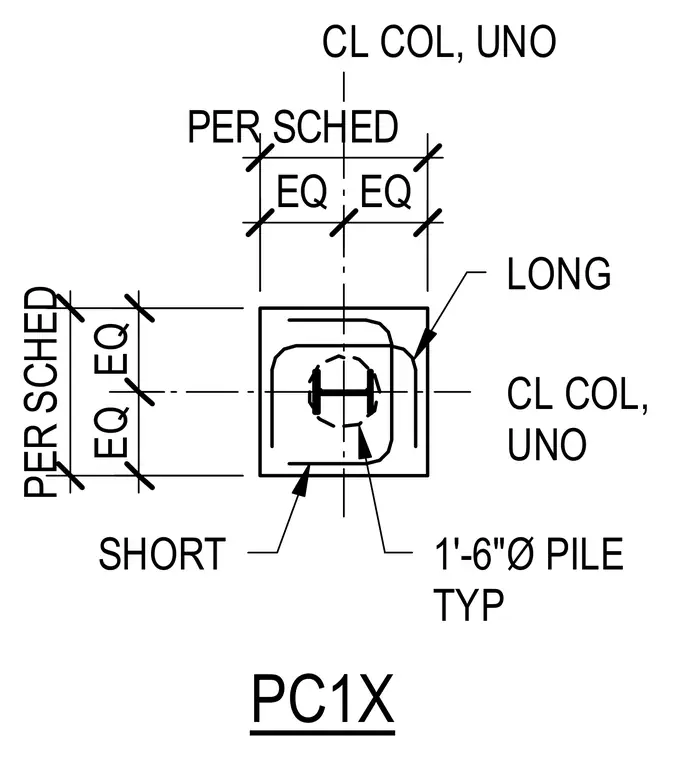

This structural detail shows a square pile cap centered on a single eighteen-inch diameter pile with centerlines aligned to the column location unless noted otherwise. Reinforcement includes scheduled long and short bars placed symmetrically with equal spacing dimensions on all sides.
PC1X CL COL, UNO CL COL, UNO PER SCHED EQ EQ EQ EQ PER SCHED 1'-6"Ø PILE TYP SHORT LONG
