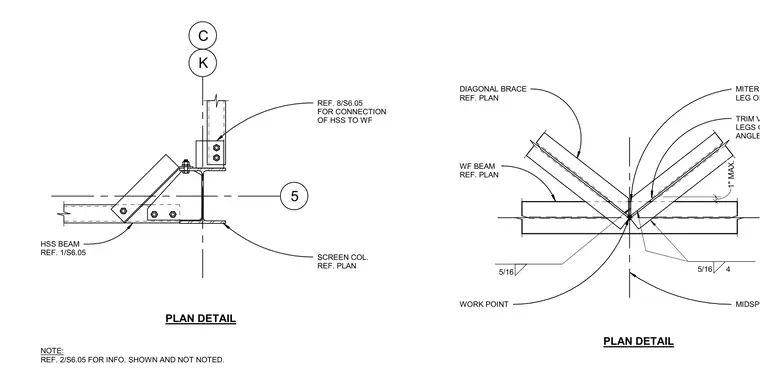

A hollow structural section beam frames into a wide flange beam and screen column with bolted and welded plate connections. Diagonal braces intersect at a common work point with mitered angle trim. Fillet welds of five-sixteenths inch size secure the angle components. Reference annotations direct the builder to related structural details for complete connection information.
1" MAX. MITER HORIZONTAL LEG OF ANGLE TRIM VERTICAL LEGS OF ANGLE BELOW WORK POINT MIDSPAN OF BEAM DIAGONAL BRACE REF. PLAN WF BEAM REF. PLAN 5/16 4 5/16 PLAN DETAIL 5 PLAN DETAIL NOTE: REF. 2/S6.05 FOR INFO. SHOWN AND NOT NOTED. K C REF. 8/S6.05 FOR CONNECTION OF HSS TO WF SCREEN COL. REF. PLAN HSS BEAM REF. 1/S6.05
