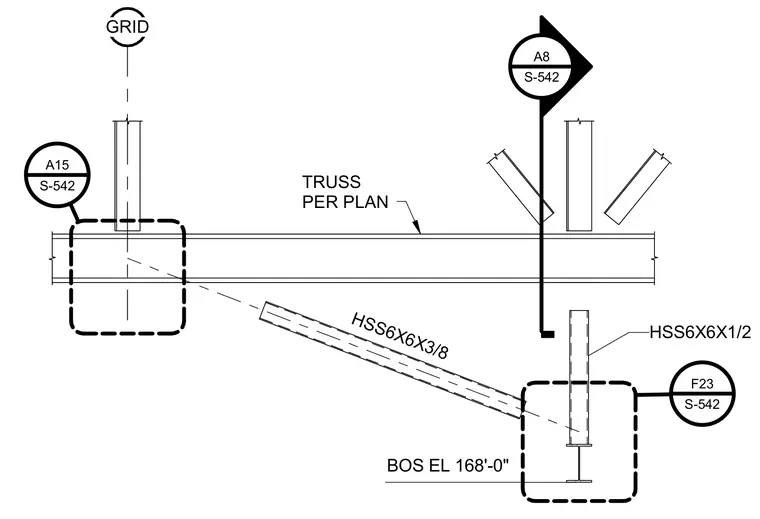

A structural steel truss assembly connects to hollow structural section columns with members sized per plan. The vertical support is formed by an HSS 6x6x1/2 column located at the building grid, with bottom of steel at elevation 168'-0". Diagonal bracing members utilize HSS 6x6x3/8 sections intersecting the truss system.
F23 S-542 A15 S-542 A8 S-542 GRID HSS6X6X1/2 BOS EL 168'-0" TRUSS PER PLAN HSS6X6X3/8
