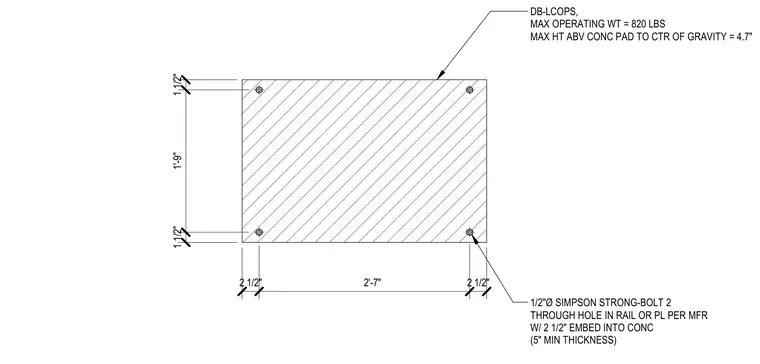

The DB-LCOPS circuit breaker has a maximum operating weight of 820 pounds and a maximum height above the concrete pad to the center of gravity of 4.7 inches. It is anchored using 1/2-inch-diameter Simpson Strong-Bolt 2 anchors placed through holes in the rail or plate per manufacturer specifications. These anchors require a 2 1/2-inch embedment into a concrete slab with a 5-inch minimum thickness.
1 1/2" 1'-9" 1 1/2" 2 1/2" 2'-7" 2 1/2" 1/2"Ø SIMPSON STRONG-BOLT 2 THROUGH HOLE IN RAIL OR PL PER MFR W/ 2 1/2" EMBED INTO CONC (5" MIN THICKNESS) DB-LCOPS, MAX OPERATING WT = 820 LBS MAX HT ABV CONC PAD TO CTR OF GRAVITY = 4.7"
